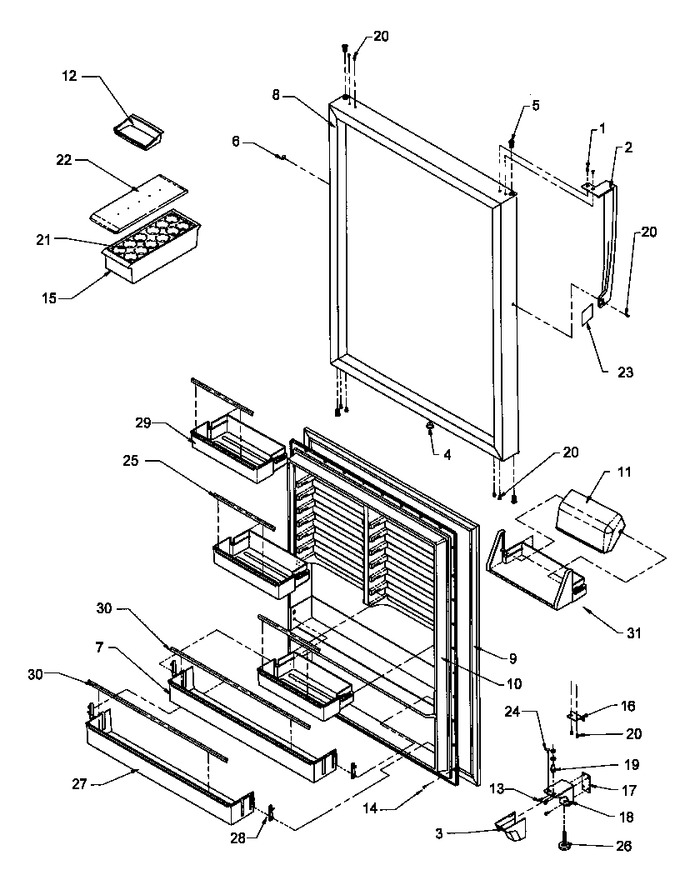

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
2	10253514		Assy, Ref Hndl L		Appelez-nous	-
3	10462705		Cover-l Hinge Lw		Appelez-nous	-
4	M0310338		Plug Button Almond		Appelez-nous	-
5	10393802		Bushing, Door (wht)		Appelez-nous	-
6	M0310730		Plug Button (almond)		Appelez-nous	-
7	10419103		Retainer, Ref Door		Appelez-nous	-
8	10925408L		Assy Ref. Door Fm		Appelez-nous	-
9	WP12550109Q		Gasket,ref Dr(white)   (Replaces: 10456801)			Immediately	$ 322.33
10	10461801		Liner, Refr Door (19)		Appelez-nous	-
11	10422607		Door- Dairy		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	M0219730		Screw				$ 7.65
15	10423128		Bin-utility		Appelez-nous	-
16	10447102		Stop, Door		Appelez-nous	-
17	10447901		Shim, Btm Hinge		Appelez-nous	-
17	10447902		Shim Hinge		Appelez-nous	-
18	10575307		Hinge, Bottom		Appelez-nous	-
19	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
20	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
21	10436505		Tray, Egg		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10201812		Cover- Hndl Screw Almond		Appelez-nous	-
24	M0310331		Plug, Button Almond		Appelez-nous	-
25	10183985		Trim-door Shelf		Appelez-nous	-
26	W11177593		Brake, Foot   (Replaces: 10354001)				$ 12.18
27	10419203		Retainer, Ref Door		Appelez-nous	-
28	10202001		Clip, Retainer		Appelez-nous	-
29	10419903		Shelf, Door		Appelez-nous	-
30	10183981		Trim-door Shelf		Appelez-nous	-
31	10182702		Shelf, Dairy		Appelez-nous	-
