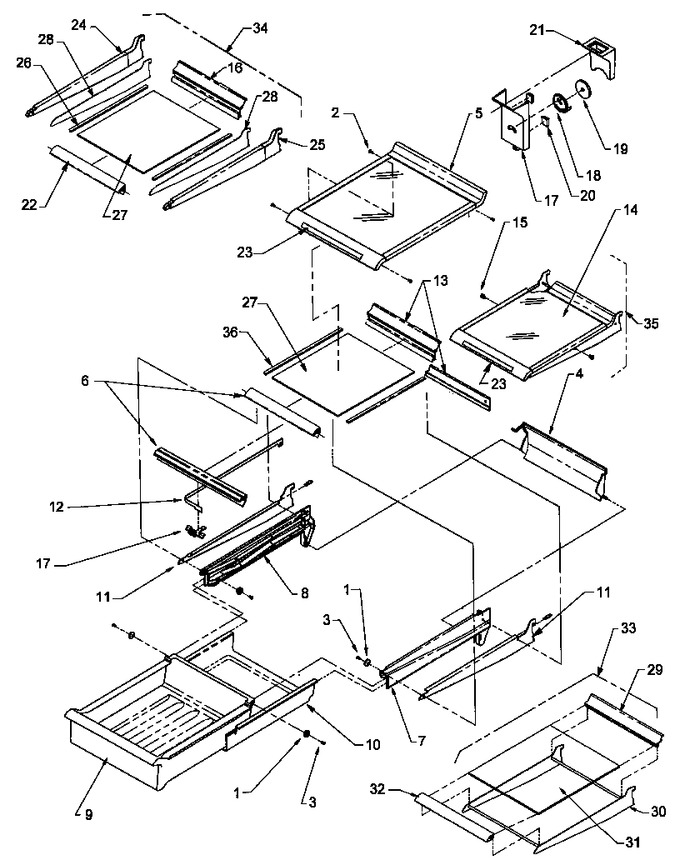

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10481001		Roller, Pan				$ 10.99
2	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
3	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
4	10445702		Scoop, Air		Appelez-nous	-
6	10450315		Extrusion-mk Fr		Appelez-nous	-
8	10432101		Glide, Meat Kpr.		Appelez-nous	-
8	10417301		Glide, Meat Kpr.		Appelez-nous	-
9	10417115		Pan, Meat Keeper		Appelez-nous	-
10	10440904		Sleeve, Mt Kpr.		Appelez-nous	-
11	10681402		Rail, Pntd		Appelez-nous	-
11	10681403		Rail, Pnt		Appelez-nous	-
12	10454003		Band, Mk Control		Appelez-nous	-
13	10451402		Extrusion Mk Rear		Appelez-nous	-
16	10436902		Extr, Gl Shelf Rear		Appelez-nous	-
17	10642103		Cover, Mk Air Sply		Appelez-nous	-
18	10479401		Control, Mt. Kpr. Air Sup		Appelez-nous	-
19	10565701		Insert, Mk Control		Appelez-nous	-
20	10852401		Gasket, Mt Kpr Duct		Appelez-nous	-
21	10479103		Tunnel, Mt Kpr		Appelez-nous	-
22	10436811		Ext-gl Shelf Front		Appelez-nous	-
24	10436603		Cover, Glass Shelf Rail		Appelez-nous	-
25	10436604		Cover, Glass Shelf Rail		Appelez-nous	-
26	10562502		Ext, Gl Shelf Side		Appelez-nous	-
27	10370014		Glass, Shelf (18-19)		Appelez-nous	-
28	10681402		Rail, Pntd		Appelez-nous	-
34	10480712		Ass`y, Spl. Ref Shelf		Appelez-nous	-
36	10562502		Ext, Gl Shelf Side		Appelez-nous	-
