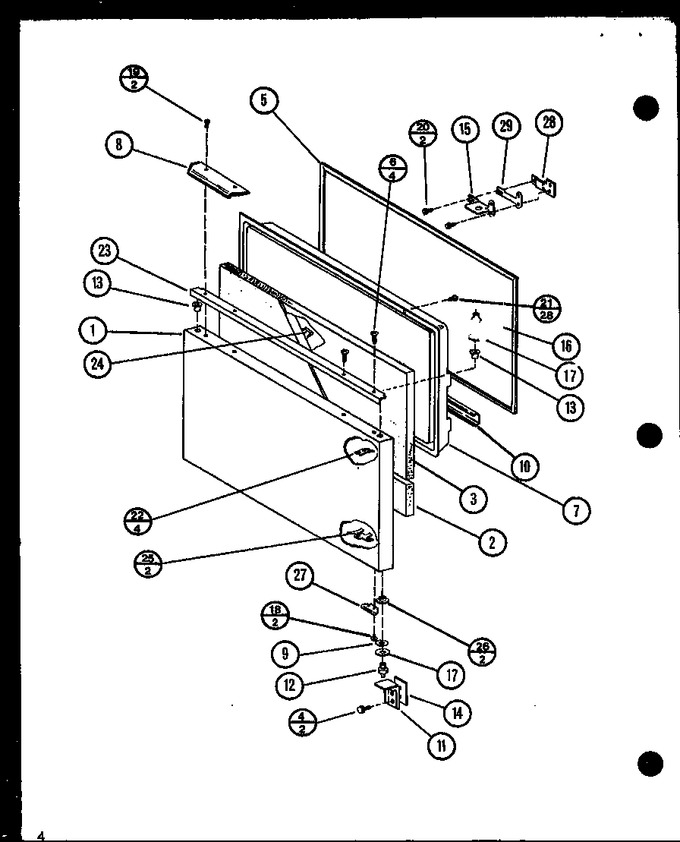

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7728201		Upper Door Pan, White		Appelez-nous	-
2	B0523574		Insulation		Appelez-nous	-
3	D7398701		Foam Slab 2pcs. = 1		Appelez-nous	-
4	M0246258		Screw		Appelez-nous	-
5	WPD7605115Q		Gasket, Door   (Replaces: D7605115)				$ 300.46
6	M0203931		Screw, Tf		Appelez-nous	-
7	D7689102		Inner Dr Panel, Frz		Appelez-nous	-
8	C8944909		Frz Door Handle Assy		Appelez-nous	-
9	M0274050		Washer		Appelez-nous	-
10	C8907219		Retainer, Package		Appelez-nous	-
11	C8814803		Bracket Lower Hinge		Appelez-nous	-
12	C8814901		Pin, Hinge K		Appelez-nous	-
13	C3652901		Bushing, Hinge Pin		Appelez-nous	-
14	B5744802		Shim		Appelez-nous	-
14	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
14	B5744804		Shim, Bottom Hinge		Appelez-nous	-
14	B5744803		Shim		Appelez-nous	-
15	C8948601		Center Hinge Bracket		Appelez-nous	-
16	B8373101		Center Pin Hinge		Appelez-nous	-
17	M0274049		Washer		Appelez-nous	-
18	M0203458		Screw		Appelez-nous	-
19	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
20	M0226831		Screw		Appelez-nous	-
21	M0219717		Screw		Appelez-nous	-
22	B8361401		Nut		Appelez-nous	-
23	D3958305		Cap Door		Appelez-nous	-
24	A3195601		Clamp-wiring		Appelez-nous	-
25	B8363501		Nut		Appelez-nous	-
26	C8852202		Bearing, Hinge		Appelez-nous	-
27	C8894802		Door Stop		Appelez-nous	-
28	C8925501		Kit, Tap Plate & Screw		Appelez-nous	-
29	B8351403		Shim, Center Hinge		Appelez-nous	-
29	B8351401		Shim K		Appelez-nous	-
29	B8351402		Shim K		Appelez-nous	-
