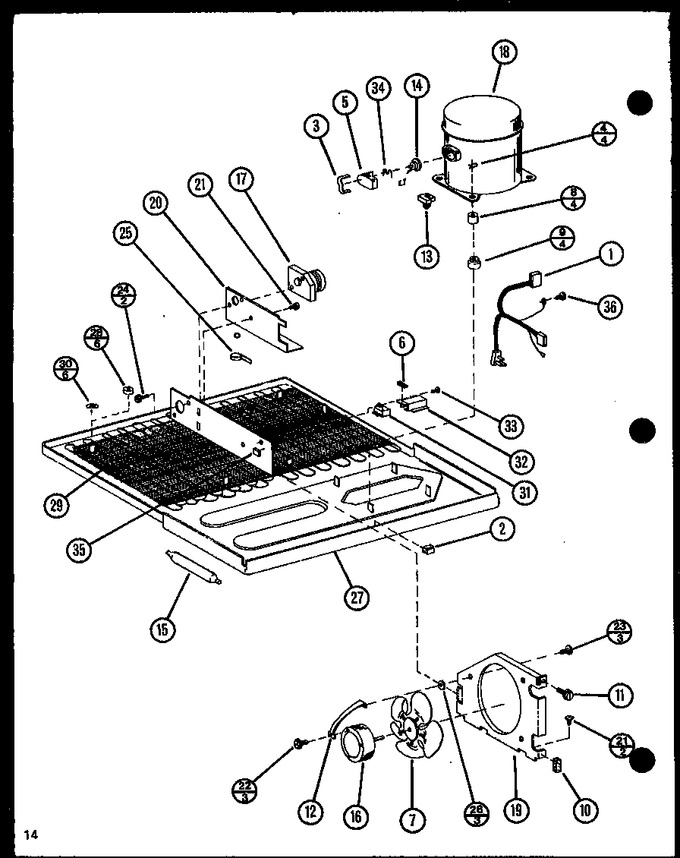

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7708401		Harness Mc		Appelez-nous	-
2	M0110508		Clip		Appelez-nous	-
3	YB8358601		Bale Strap		Appelez-nous	-
4	B8352901		Clip Comp		Appelez-nous	-
5	C8960801		Term Cover		Appelez-nous	-
6	A3261703		Grommet Per In.		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)			Immediately	$ 7.19
10	B5759604		Gasket		Appelez-nous	-
11	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 7.86
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	C8931503		Relay		Appelez-nous	-
14	C8906206		Overload		Appelez-nous	-
15	WPB2150504		Drier   (Replaces: B5715001)				$ 130.46
16	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
17	R0168027		Kit, Defrost Timer   (Replaces: D7790402)			Immediately	$ 152.25
18	30-FF10HBK1		Compressor Aea1410axa   (Replaces: D7736204)				$ 833.75
19	D7691002		Cond. Fan Shrd		Appelez-nous	-
20	D7690801		Timer Bracket		Appelez-nous	-
21	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
22	M0223803		Screw		Appelez-nous	-
23	M0221332		Screw, Shoulder		Appelez-nous	-
24	M0218118		Screw		Appelez-nous	-
25	WPW10339879		Tie   (Replaces: M0321202)				$ 7.90
26	M0500107		Grommet K		Appelez-nous	-
27	D7595411		Base Pan - Ptd		Appelez-nous	-
28	B8346301		Spacer Cond.		Appelez-nous	-
29	D7654301		Condenser Pntd		Appelez-nous	-
30	M0293703		Speednut		Appelez-nous	-
31	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 58.86
32	C8931101		Shield-capacitor		Appelez-nous	-
33	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.83
34	B8358301		Spring, Overload		Appelez-nous	-
35	A9008301		Felt		Appelez-nous	-
36	M0253916		Screw		Appelez-nous	-
