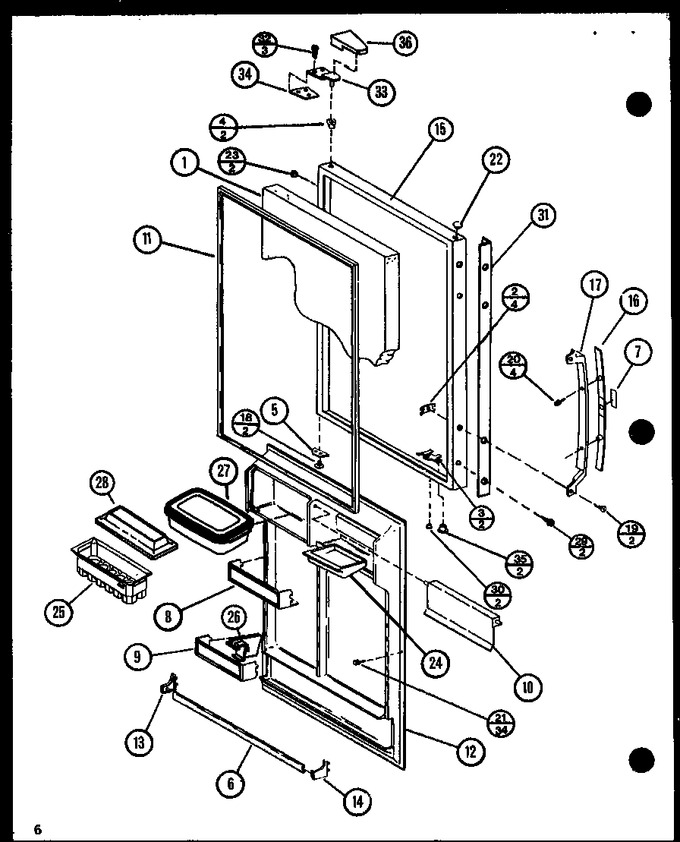

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5683516		Insulation, Bat		Appelez-nous	-
2	B8361401		Nut		Appelez-nous	-
3	B8363501		Nut		Appelez-nous	-
4	C3652901		Bushing, Hinge Pin		Appelez-nous	-
5	C8894802		Door Stop		Appelez-nous	-
6	C8907223		Retainer Pkg		Appelez-nous	-
7	C8945003		Nameplate		Appelez-nous	-
8	D7565413		Door Shelf V		Appelez-nous	-
9	D7574513		Ret Cont. Pkg V		Appelez-nous	-
10	D7805708		Door Dairy		Appelez-nous	-
11	D7605116		Gasket, Door		Appelez-nous	-
12	D7811901		Inner Door, Ref		Appelez-nous	-
13	D7681803		Cap, Pkg Retainer End		Appelez-nous	-
14	D7681804		Cap, Pkg Retainer End		Appelez-nous	-
15	D7728348		Use D7728348wq		Appelez-nous	-
16	D7694704		Insert, Handle		Appelez-nous	-
17	D7694803		Handle				$ 125.50
18	M0203458		Screw		Appelez-nous	-
19	M0203858		Screw		Appelez-nous	-
20	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 7.56
21	M0219717		Screw		Appelez-nous	-
22	M0310601		Plug		Appelez-nous	-
23	M0311301		Plug Button		Appelez-nous	-
24	D3799802		Butter Tray		Appelez-nous	-
25	D7695616		Egg Bucket		Appelez-nous	-
26	D7806103		Snugger Door		Appelez-nous	-
27	D7806403		Container Sec. Ser.		Appelez-nous	-
28	D7805909		Cover, Egg Bucket		Appelez-nous	-
29	M0210418		Screw		Appelez-nous	-
30	M0203931		Screw, Tf		Appelez-nous	-
31	D7739604		Trim, White		Appelez-nous	-
33	B5744301		Hinge		Appelez-nous	-
33	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.38
34	B8389001		Shim, Top Hinge		Appelez-nous	-
34	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
34	B8389002		Shim Top Hinge		Appelez-nous	-
35	C8852202		Bearing, Hinge		Appelez-nous	-
36	D7872103		Cover Hinge L		Appelez-nous	-
