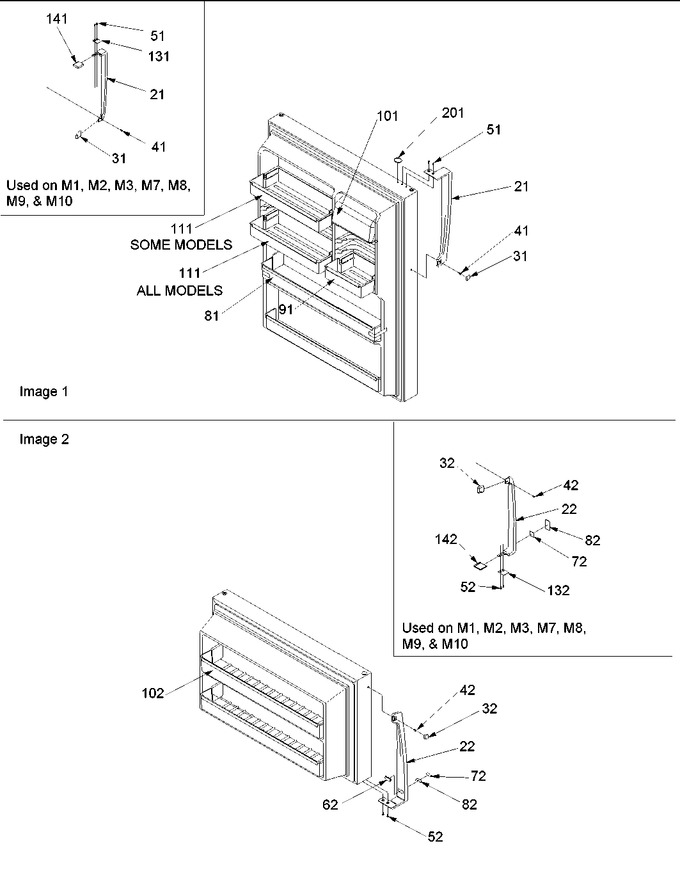

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	10253537Q		Assy,ref Dr Handle(bisque)		Appelez-nous	-
22	10253538Q		Assy,frz Dr Handle(bisque)		Appelez-nous	-
31	10201814		Cover,ref Hndl Screw(bisque)		Appelez-nous	-
32	10201813		Cover,fz Hndl Screw(bisque)		Appelez-nous	-
41	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
42	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
51	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
52	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
62	10184307		Plug,nameplate(bisque)		Appelez-nous	-
72	10184401		Nameplate, Handle		Appelez-nous	-
81	10183121		Retainer, Ref Door		Appelez-nous	-
82	10184501		Pad Nameplate		Appelez-nous	-
91	10502912		Bucket, Ref Door		Appelez-nous	-
101	10423414		Door,dairy		Appelez-nous	-
102	10419015		Retainer, Ref Door		Appelez-nous	-
111	10416911		Shelf, Ref Door		Appelez-nous	-
