Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

31 10451404 Extr Mk Rear Appelez-nous -
41 10450321 Extr, Mk Front Appelez-nous -
51 10437305 Sleeve, Mk Appelez-nous -
61 10681403 Rail, Pnt Appelez-nous -
71 10681402 Rail, Pntd Appelez-nous -
81 10445701 Scoop, Air V Appelez-nous -
91 10588201 Slide, Mtkp Cont. Appelez-nous -
101 10454004 Band, Mk Control Appelez-nous -
111 10417301 Glide, Meat Kpr. Appelez-nous -
121 10432101 Glide, Meat Kpr. Appelez-nous -
131 10417013 Pan,meatkeeper Appelez-nous -
141 10370010 Shelf, Glass Appelez-nous -
151 10562504 Ext, Gl Shelf Side Appelez-nous -
171 10481001 Roller, Pan Special Order $ 10.99

191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

251 12027362 Spacer, Mk Slide   (Replaces: 12019301) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

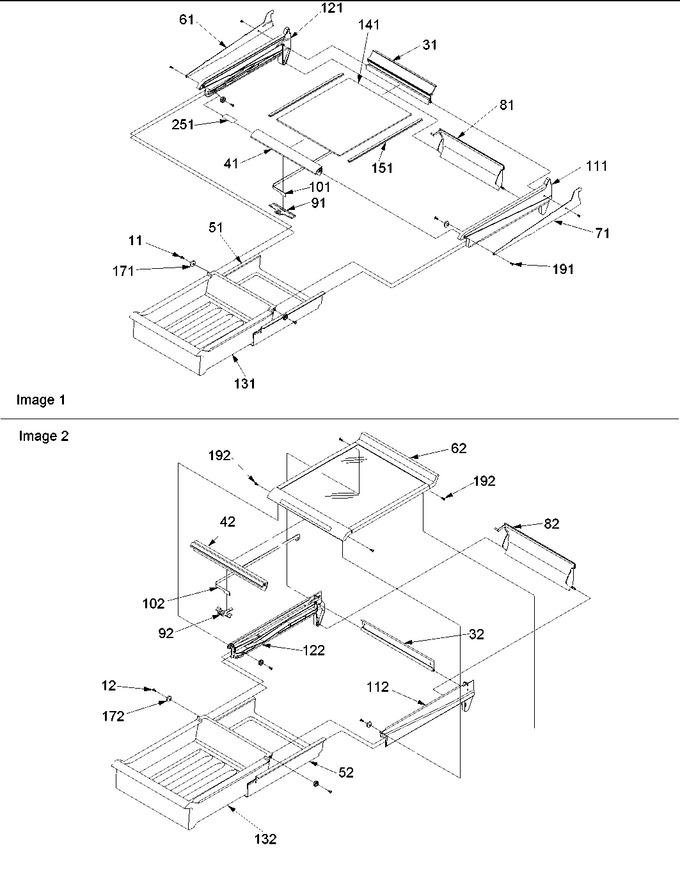

Diagram for TX21VC (BOM: P1315905W C)
