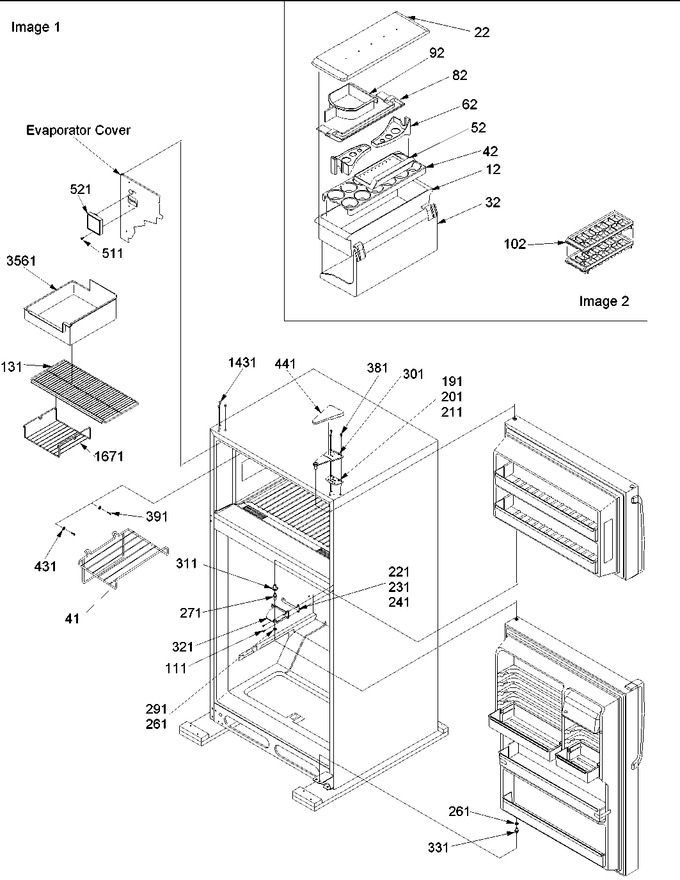

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10423129		Bin-utility		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
42	10436506		Tray, Egg				$ 8.28
52	10310901		Tray, Butter		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
111	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
131	Y10440002		Shelf, Freezer Wire		Appelez-nous	-
221	10562201		Shim, Center Hinge		Appelez-nous	-
231	10562202		Shim, Center Hinge		Appelez-nous	-
241	10562203		Shim, Center Hinge		Appelez-nous	-
261	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
271	10351002		Pin, Hinge (ctr)		Appelez-nous	-
291	M0274058		Shim, Non Metal (wht)				$ 5.83
301	12077316		Hinge, Top-e Ct		Appelez-nous	-
311	12028501		Closure, Door (wht)				$ 6.67
321	12446503		Hinge,ctr-e Ct(white)		Appelez-nous	-
331	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
441	12076305		Cover, Hinge (bsq)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
521	D7874403		Cover-fl Tb/plug		Appelez-nous	-
1431	M0310738		Plug, Top Hinge Button (bsq)		Appelez-nous	-
