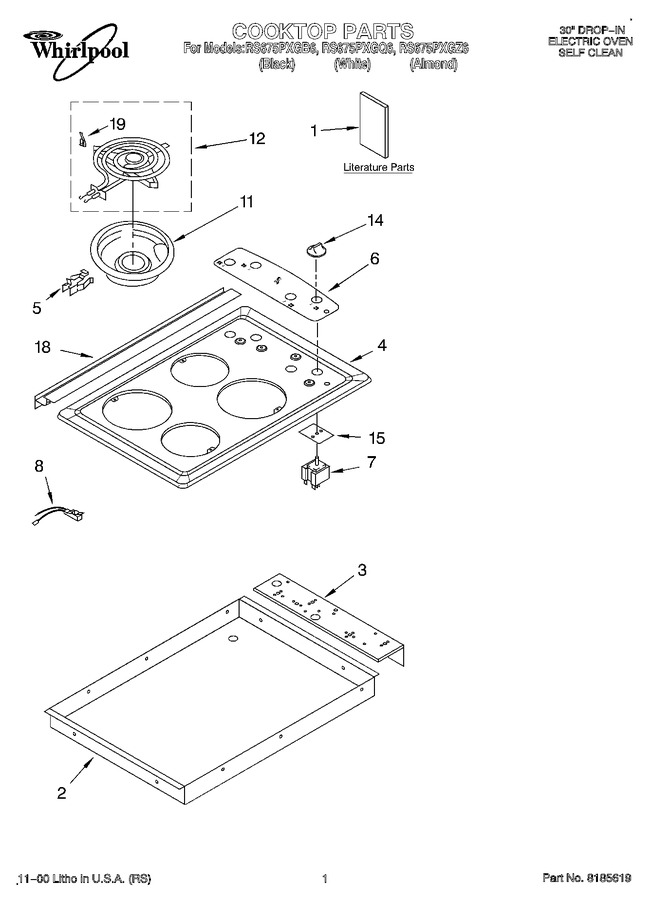

01 - Cooktop, Literature
02 - Control Panel
03 - Oven
04 - Oven Door
05 - Internal Oven
06 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191799 | Installation Instructions |
|
- | |||||
| 1 | LIT3191537 | Use & Care Guide |
|
- | |||||
| 1 | LIT3192845 | Tech Sheet |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3192459 | Burner Box |
|
- | |||||
| 3 | WP12990527 | Screw, 8-18 X 3/8 (Replaces: 3400843) |
|
Immediately | $ 8.76 | ||||
| 3 | 3192330 | Bracket, Mounting |
|
- | |||||
| 4 | 3191169 | Cooktop (almond) |
|
- | |||||
| 4 | 3191168 | Cooktop (white) |
|
- | |||||
| 4 | 3191167 | Cooktop (black) |
|
- | |||||
| 5 | 3192575 | Clip, Mtg. (4) |
|
- | |||||
| 6 | 3191229 | Panel, Control (white) |
|
- | |||||
| 6 | 3191228 | Panel, Control (black) |
|
- | |||||
| 6 | 3191230 | Panel, Control (almond) |
|
- | |||||
| 7 | WP3191471 | Switch, Infinite (use W/ 6`` Surface (blue Shaft)) (Replaces: 3191471) |
|
$ 198.96 | |||||
| 7 | WP3191473 | Switch, Infinite (use W/8`` Surface (red Shaft)) (Replaces: 3191473) |
|
$ 168.75 | |||||
| 7 | 3400855 | Switch, Infinite (screw, 8-32 X 1/4) |
|
- | |||||
| 8 | WP4456181 | Light, Indicator (Replaces: 3191491) |
|
$ 111.25 | |||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 11 | W10196405RW | Pan, Surface (8`` Pan) (Replaces: 3195209) |
|
Immediately | $ 21.82 | ||||
| 12 | WP660532 | Element, Surface (6`` Burner) (Replaces: 8053266) |
|
Immediately | $ 41.00 | ||||
| 12 | WPW10259865 | Element, Surface (8`` Burner) (Replaces: 8053268) |
|
Immediately | $ 117.69 | ||||
| 14 | WP3196231 | Knob, Control (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 14 | 3196232 | Knob, Control (white) |
|
$ 16.71 | |||||
| 14 | 3196233 | Knob, Control (almond) |
|
$ 15.63 | |||||
| 15 | 3183956 | Seal, Switch Shaft (4) |
|
$ 48.77 | |||||
| 18 | 3192102 | Trim, Extension (black) |
|
- | |||||
| 18 | 3192104 | Trim, Extension (almond) |
|
- | |||||
| 18 | 3192103 | Trim, Extension (white) |
|
- | |||||
| 19 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 8.12 |
