SELECT A DIAGRAM
01 - Cooktop, Literature

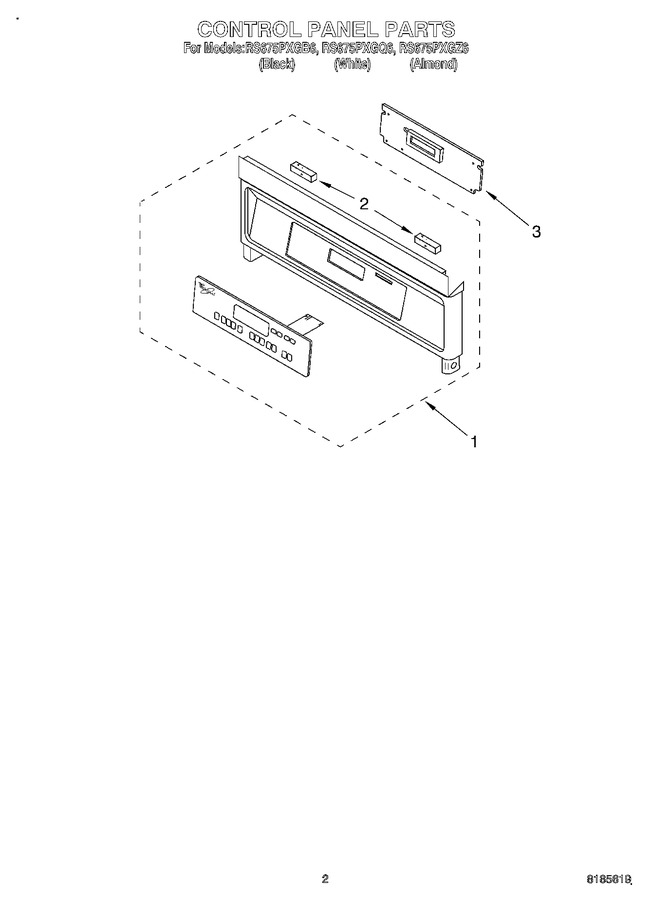

02 - Control Panel
03 - Oven
04 - Oven Door
05 - Internal Oven
06 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452845 | Control Panel Assy. (white) |
|
- | |||||
| 1 | 4452846 | Control Panel Assy. (almond) |
|
- | |||||
| 1 | 4452844 | Control Panel Assy. W/membrane Switch (black Model) |
|
- | |||||
| 1 | WP3400832 | Control Panel Assy. (screw) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4453193 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 |
