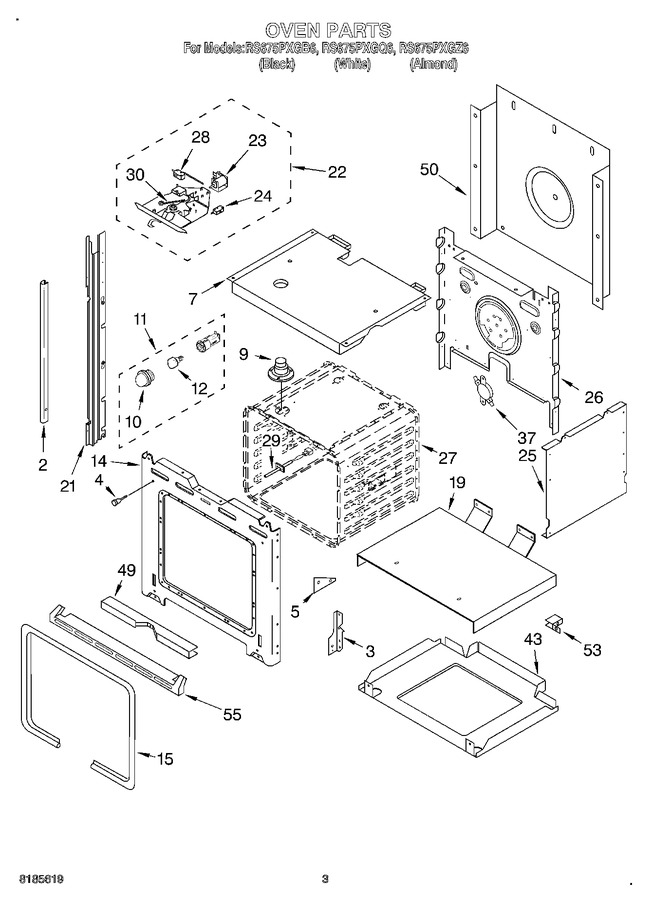

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4450846		Trim, Side (right Hand) (almond Model)		Appelez-nous	-
1	4450844		Trim, Side (right Hand) (black)		Appelez-nous	-
1	4450848		Trim, Side (left Hand) (white)		Appelez-nous	-
1	4450849		Trim, Side (left Hand) (almond)		Appelez-nous	-
1	4450847		Trim, Side (left Hand) (black)		Appelez-nous	-
1	WP8281236		Trim, Side (left Hand) (screw)   (Replaces: 4449747)				$ 8.16
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455286		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451740		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	4452312		Microswitch N.c.				$ 90.43
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4451537		Spring, Latch		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Bracket-support		Appelez-nous	-
55	4448478		Trim, Bottom (white)		Appelez-nous	-
55	4448477		Trim, Bottom (black)				$ 71.44
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	4450365		Insulation, Back				$ 70.95
55	4448862		Trim, Bottom (almond Model)		Appelez-nous	-
