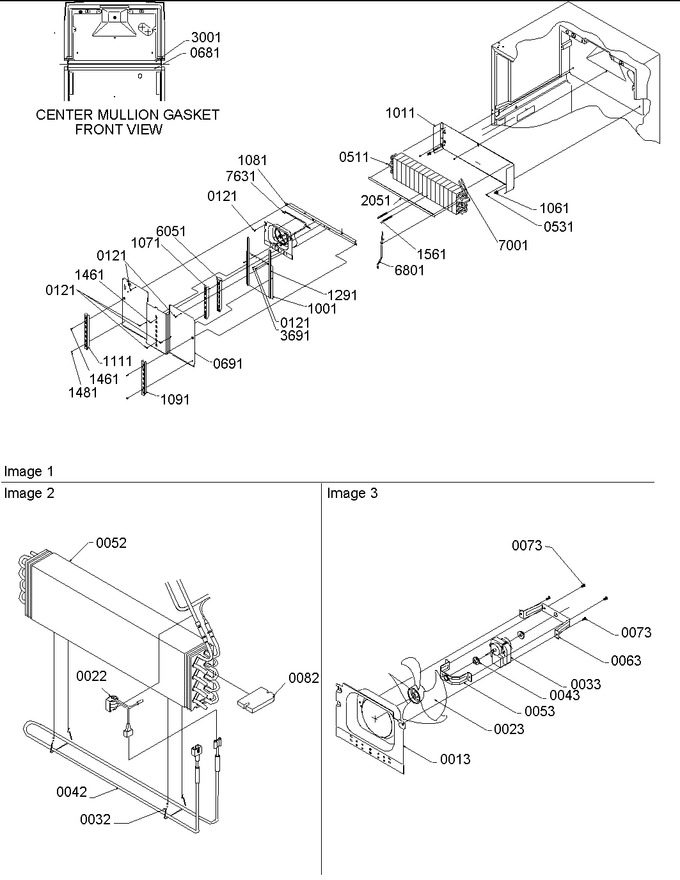

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10422304		Shroud, Evap. Fan		Appelez-nous	-
22	10442410		Thermostat				$ 48.58
23	W10116797		Assy, Fan-evap   (Replaces: 10855401)			Immediately	$ 8.56
32	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
33	WP10449501		Motor-evap Fan   (Replaces: 10449501)				$ 240.54
42	10991109		Heater, Evaporator		Appelez-nous	-
43	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
52	R9900178		Assy, Low Side		Appelez-nous	-
53	10492801		Brkt, Up Evap. Fan				$ 5.27
63	10492701		Brkt, Lwr. Evap. Fan				$ 5.27
73	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
82	10991002		Block, R Evap.		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
511	10428301		Block, Evap. L.		Appelez-nous	-
531	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
681	10685508		Gasket, Sealing		Appelez-nous	-
691	10432406		Cover, Evaporator		Appelez-nous	-
1001	10440714		Cover, Evaporator		Appelez-nous	-
1011	10427712		Shield, Evap.		Appelez-nous	-
1061	10442301		Clip, Evaporator		Appelez-nous	-
1291	A3030356		Gasket		Appelez-nous	-
2051	A3189348		Gasket, Foam		Appelez-nous	-
3001	B5759626		Gasket, Sealing		Appelez-nous	-
3691	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
6801	10586601		Clip, Ht Transfer		Appelez-nous	-
7001	M0321210		Tie, Elec		Appelez-nous	-
7631	A3030354		Gasket		Appelez-nous	-
