Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 10436603 Cover, Glass Shelf Rail Appelez-nous -
15 10433804 Rail, Crisper Back Appelez-nous -
23 10436604 Cover, Glass Shelf Rail Appelez-nous -
25 10467804 Band, Crisper Cont. Appelez-nous -
31 10451404 Extr Mk Rear Appelez-nous -
33 10562504 Ext, Gl Shelf Side Appelez-nous -
35 10797501 Slide, Crisper Appelez-nous -
41 10450321 Extr, Mk Front Appelez-nous -
43 10370010 Shelf, Glass Appelez-nous -
45 10432703 Rail, Side Crisper Appelez-nous -
51 10437305 Sleeve, Mk Appelez-nous -
53 10681402 Rail, Pntd Appelez-nous -
55 10432704 Rail, Side Crisper Appelez-nous -
61 10681403 Rail, Pnt Appelez-nous -
63 10436905 Extr, Gl Shelf Rear Appelez-nous -
65 10432805 Rail, Ctr. Crisper Special Order $ 21.50

71 10681402 Rail, Pntd Appelez-nous -
73 10436817 Ext-gl Shlf Front Appelez-nous -
75 10432806 Rail, Ctr. Crisper Special Order $ 23.67

81 10445701 Scoop, Air V Appelez-nous -
83 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

85 10687801 Rail, R. Crisper Frt Appelez-nous -
91 10588201 Slide, Mtkp Cont. Appelez-nous -
95 10687802 Rail, L. Crisper Frt Appelez-nous -
101 10454004 Band, Mk Control Appelez-nous -
105 10435604 Rail, Crisper Back Appelez-nous -
111 10417301 Glide, Meat Kpr. Appelez-nous -
121 10432101 Glide, Meat Kpr. Appelez-nous -
131 10417013 Pan,meatkeeper Appelez-nous -
135 10370012 Shelf, Glass Special Order $ 86.24

141 10370010 Shelf, Glass Appelez-nous -
151 10562504 Ext, Gl Shelf Side Appelez-nous -
175 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

185 10688055 Extr, R Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

195 10688054 Extr, L Crisp Front Appelez-nous -
205 10530204 Seal, Crisper Special Order $ 39.10

251 12027362 Spacer, Mk Slide   (Replaces: 12019301) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

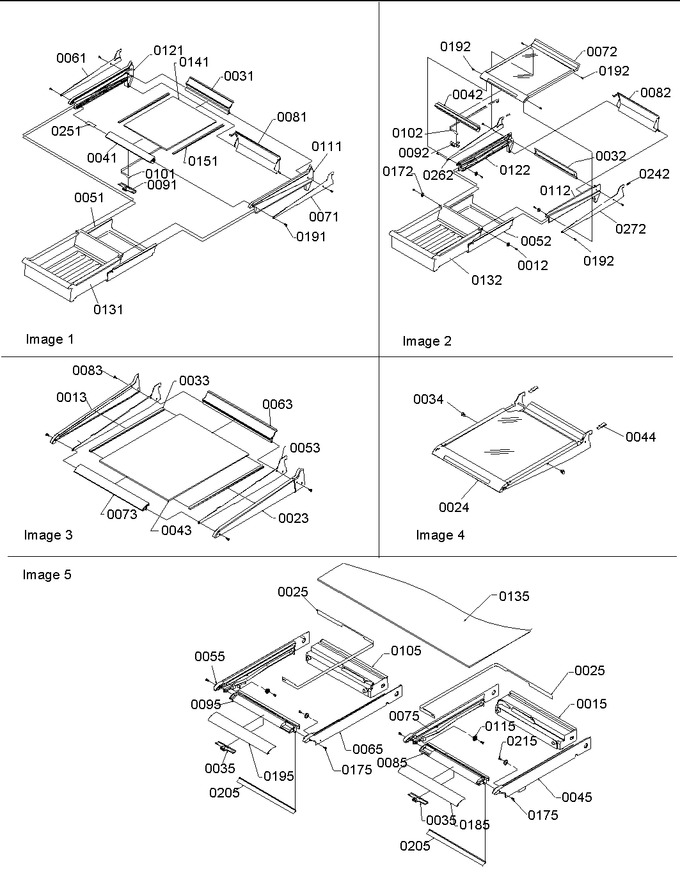

Diagram for TX22V2L (BOM: P1306503W L)
