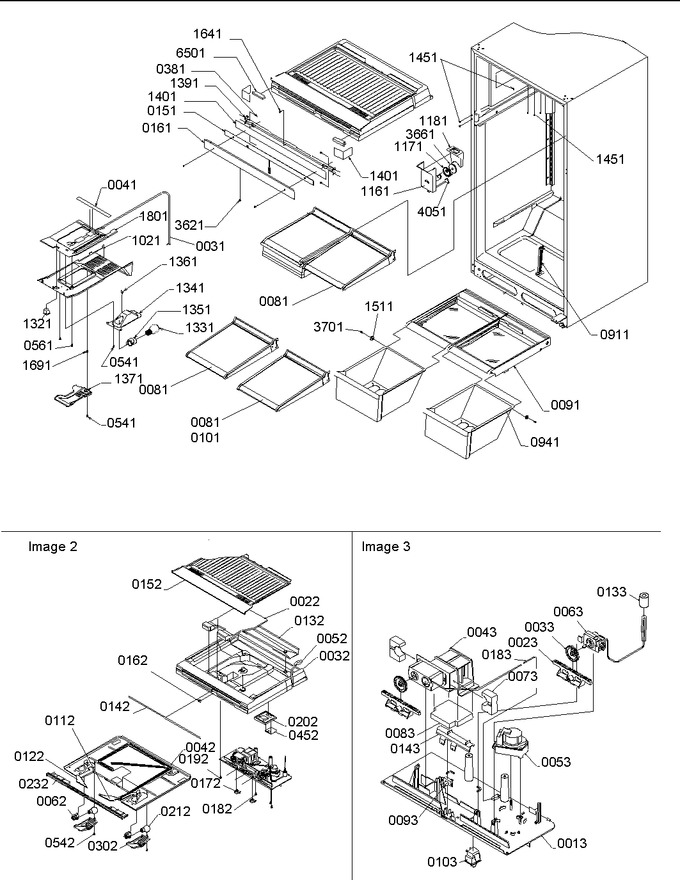

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 12035105 | Housing, Control |
|
- | |||||
| 22 | 10476402 | Insert, Drain Block |
|
- | |||||
| 23 | 10439601 | Rack, Control |
|
- | |||||
| 31 | 12172507 | Harness, Cabinet |
|
- | |||||
| 32 | 10996101 | Block-drain |
|
- | |||||
| 33 | 10442601 | Pinion, Control |
|
- | |||||
| 41 | B8386613 | Gasket |
|
- | |||||
| 42 | 12035216 | Ref Top- E Ct |
|
- | |||||
| 43 | R0161072 | Assy, Damper Control |
|
- | |||||
| 52 | 10573506 | Harness, Drain Block |
|
- | |||||
| 53 | R0168027 | Timer-defrost (Replaces: 10428601) |
|
Immediately | $ 159.86 | ||||
| 62 | D7714408 | Socket, Light |
|
$ 68.10 | |||||
| 63 | R9700005 | Assy, Frz Control |
|
- | |||||
| 73 | 10442801 | Insert,damper |
|
- | |||||
| 81 | 10480715Q | Assy, Spl Prf Shelf |
|
- | |||||
| 83 | 10442901 | Insulation, Damper |
|
- | |||||
| 91 | 10698539Q | Assy, Crisp Frame |
|
- | |||||
| 93 | M0350201 | Switch, St |
|
- | |||||
| 103 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 132 | 10435913 | Tray, Drip |
|
- | |||||
| 133 | 10673603 | Insulation, Cap |
|
- | |||||
| 142 | 10450834 | Membrane, Breaker |
|
- | |||||
| 143 | 10565101 | Shield, Wire |
|
- | |||||
| 151 | 10543614 | Heater, Mullion |
|
- | |||||
| 152 | 10995004 | Freezer Bottom |
|
- | |||||
| 161 | 10433347 | Mullion, Center (white) |
|
- | |||||
| 162 | 10453001 | Cap, Switch |
|
- | |||||
| 172 | 10565401 | Knob, Control |
|
- | |||||
| 182 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 183 | A3012543 | Tube-plastic |
|
- | |||||
| 192 | M0224128 | Screw |
|
- | |||||
| 202 | 10995201 | Insert-mk Air Sply |
|
- | |||||
| 212 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 232 | 10435512 | Frame, Ref Top Brk |
|
- | |||||
| 302 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 452 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 541 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 542 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 561 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 911 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 941 | Y10430111 | Pan-crisper |
|
- | |||||
| 1021 | 10440405 | Duct, Frz Air |
|
- | |||||
| 1161 | 10642103 | Cover, Mk Air Sply |
|
- | |||||
| 1171 | 10479401 | Control, Mt. Kpr. Air Sup |
|
- | |||||
| 1181 | 10479103 | Tunnel, Mt Kpr |
|
- | |||||
| 1321 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 1331 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 1341 | C8730103 | Housing-light |
|
- | |||||
| 1351 | D7714408 | Socket, Light |
|
$ 68.10 | |||||
| 1361 | B5733302 | Clip, Ground |
|
- | |||||
| 1371 | 10678401 | Shield, Frz Light |
|
- | |||||
| 1391 | 10433611 | Plate, Center Tap |
|
- | |||||
| 1401 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 1451 | M0311605 | Plug, Button (wht) |
|
- | |||||
| 1641 | M0253916 | Screw |
|
- | |||||
| 1691 | M0580007 | Grommet, Screw |
|
- | |||||
| 1801 | 10779601 | Insul. Air Duct |
|
- | |||||
| 3621 | M0211520 | Screw - Sm |
|
- | |||||
| 3661 | 12411301 | Insert, Mk Control |
|
- | |||||
| 4051 | 10852401 | Gasket, Mt Kpr Duct |
|
- | |||||
| 6501 | 10772301 | Insulation |
|
- | |||||
| NI | 10573402 | Harness, Control |
|
- |
