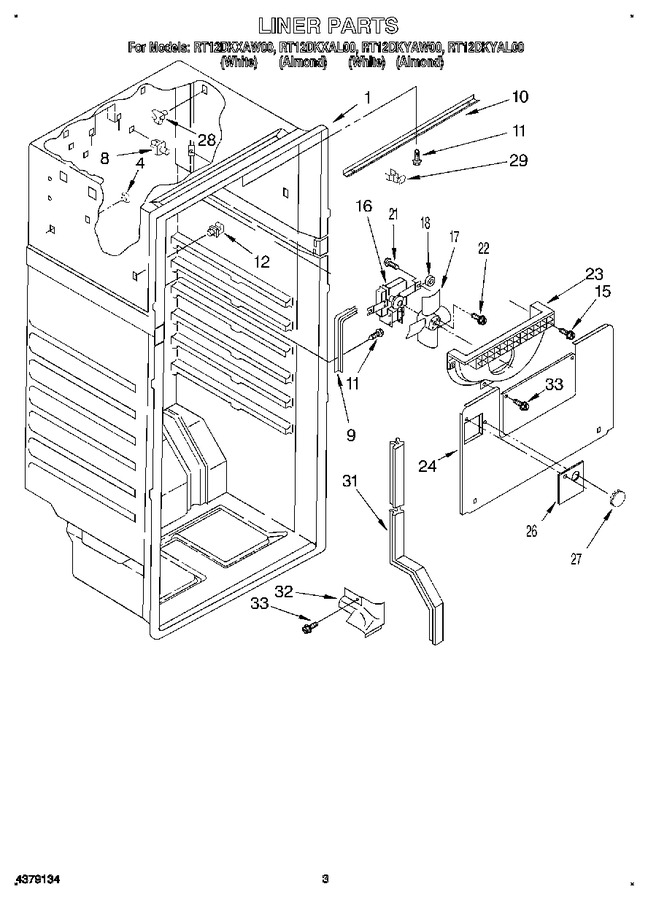

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
8	1108519		Stud, Evaporator (2)		Appelez-nous	-
9	2150905		Air Deflector Side (2)		Appelez-nous	-
10	2150906		Air Deflector Top		Appelez-nous	-
11	2151175		Plug Fastner (11)		Appelez-nous	-
12	939065		Stud Hook (2)				$ 7.25
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	482731		Motor, Fan   (Replaces: 2154977)			Immediately	$ 79.05
17	WP1100938		Blade, Fan   (Replaces: 1127752)				$ 87.87
18	531933		Grommet (2)				$ 5.70
21	489168		Screw (2)		Appelez-nous	-
22	00487887		Screw (2)   (Replaces: 487887)				$ 244.80
23	1122814		Scroll, Fan		Appelez-nous	-
24	1108509		Evaporator Cover		Appelez-nous	-
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1129070)				$ 44.97
27	1103725		Hole Plug		Appelez-nous	-
28	939203		Support, Stud (2)		Appelez-nous	-
29	1108523		Clip, Ground		Appelez-nous	-
31	1110678		Cover Tube, Rear		Appelez-nous	-
32	941776		Cover Tube, Bottom		Appelez-nous	-
33	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.79
