SELECT A DIAGRAM

01 - Cabinet


02 - Liner

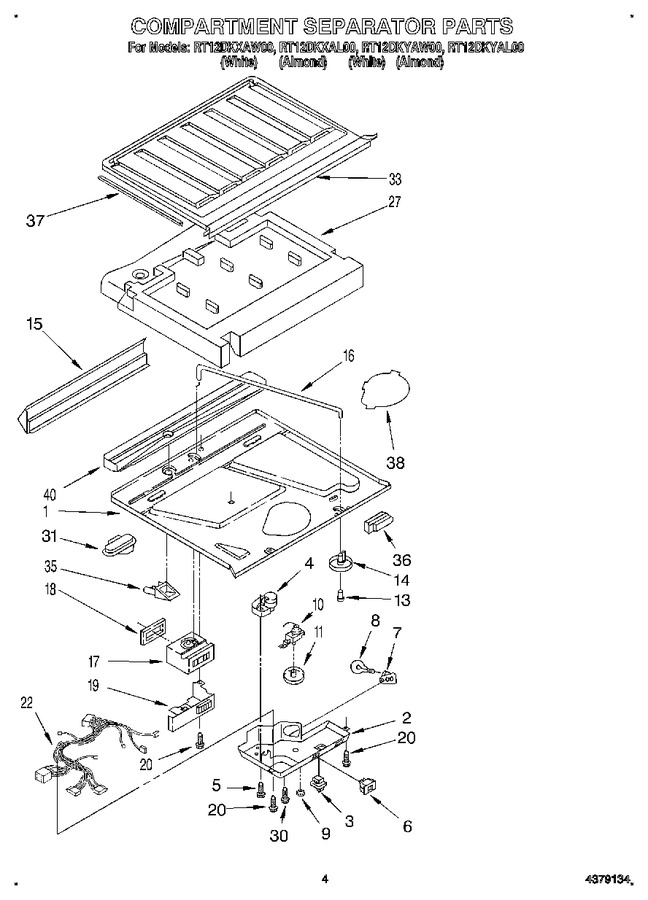

03 - Compartment Separator


04 - Unit


05 - Door, Lit/optional


06 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114546		Bottom, Compartment Separator		Appelez-nous	-
2	935726		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
4	WP2183400		Timer, Defrost   (Replaces: 2162044)			Immediately	$ 86.97
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.57
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 110.16
8	W11679940		Bulb, Light   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	WP819470		Thermostat Barrier Assembly   (Replaces: 1108614)				$ 157.10
11	937144		Knob, Thermostat		Appelez-nous	-
13	1111792		Retainer, Knob		Appelez-nous	-
14	1111737		Knob, Air Control		Appelez-nous	-
15	2151233		Gasket, Bottom Seperator		Appelez-nous	-
16	1111270		Rod, Connecting		Appelez-nous	-
17	935721		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	1108522		Cover, Air Diffuser		Appelez-nous	-
20	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	2151194		Wiring, Assembly Control Box		Appelez-nous	-
27	1114430		Insulation, Compartment		Appelez-nous	-
30	488624		Screw, 8 X 3/8 (2) Separator Front		Appelez-nous	-
31	1108521		Hood, Air Return (2)		Appelez-nous	-
33	1128228		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
36	939056		Rear Corner, Block		Appelez-nous	-
37	1114468		Gasket (2)		Appelez-nous	-
38	937227		Heat Shield		Appelez-nous	-
40	1108512		Drain Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
