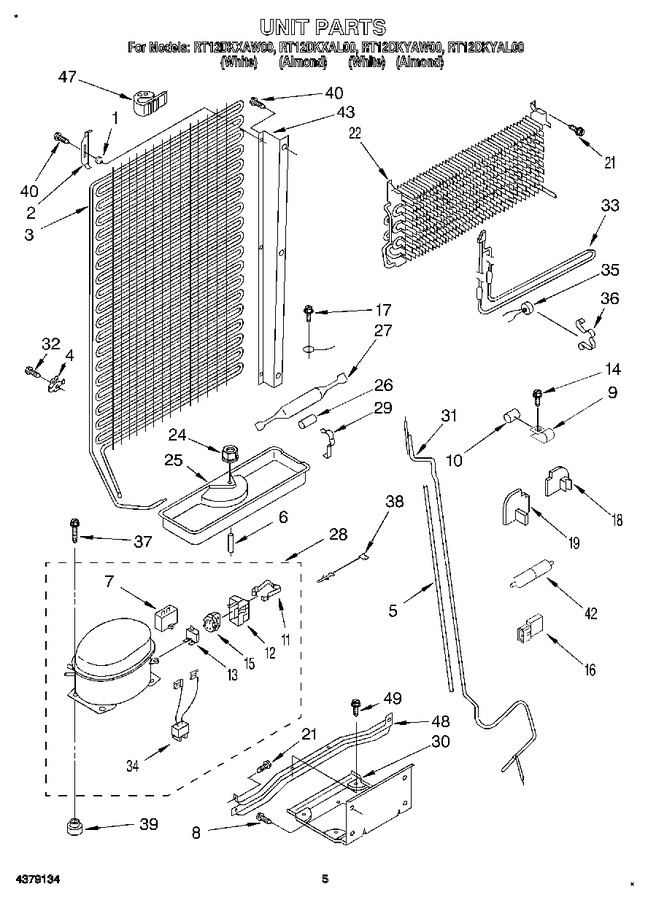

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	817001		Spacer (6)		Appelez-nous	-
2	2150555		Bracket (6)		Appelez-nous	-
3	2150939		Condenser & Precooler Assembly		Appelez-nous	-
4	510414		Clip, Tube (2)		Appelez-nous	-
5	1108537		Sleeve		Appelez-nous	-
6	938275		Spacer		Appelez-nous	-
7	2154565		Running Capacitor		Appelez-nous	-
8	WP250830		Screw   (Replaces: 489048)				$ 7.95
9	510716		Tube Clamp		Appelez-nous	-
10	1108064		Dampener		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	4387913		Overload (service (includes Relay))   (Replaces: 2154759)			Immediately	$ 84.39
13	2150966		Overload (production (includes Relay))		Appelez-nous	-
14	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
15	N/A		Relay (see Overload)		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
17	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
18	2150558		Side Block, Right Evaporator		Appelez-nous	-
19	2150946		Side Block, Left Evaporator		Appelez-nous	-
21	489340		Screw   (Replaces: 488683)		Appelez-nous	-
22	1108531		Evaporator		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.24
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Drier   (Replaces: 850037)			Immediately	$ 52.57
28	482801		Tray Mounting Kit				$ 119.50
28	2154556		Compressor (includes Items 7, 11, 12, 13, 15, 34, 37, 39) (also Order)		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 86.33
29	1127590		Clamp, Dryer		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1116647		Exchanger, Heat		Appelez-nous	-
32	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 10.72
33	2151192		Heater, Defrost		Appelez-nous	-
34	WP2172890		Capacitor Wiring   (Replaces: 1127675)				$ 8.10
35	2151193		Bi-metal, Defrost		Appelez-nous	-
36	1110548		Clamp		Appelez-nous	-
37	876811		Screw (4)   (Replaces: 489373)				$ 7.42
38	1101125		Overload Wiring (red)		Appelez-nous	-
38	1101124		Overload Wiring (white)		Appelez-nous	-
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	WP489478		Screw   (Replaces: 489242)				$ 7.75
42	1116650		Muffler		Appelez-nous	-
43	2150554		Channel, Condenser (left)		Appelez-nous	-
43	2150553		Channel, Condenser (right)		Appelez-nous	-
47	1120596		Bumper (2)		Appelez-nous	-
48	945449		Unit Mounting Rail		Appelez-nous	-
49	876764		Valve, Access(3/16``)			Immediately	$ 91.35
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	978030		Valve, Access (3/4``)				$ 130.71
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 10.72
49	978026		Valve, Access (5/16``)			Immediately	$ 128.09
