| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

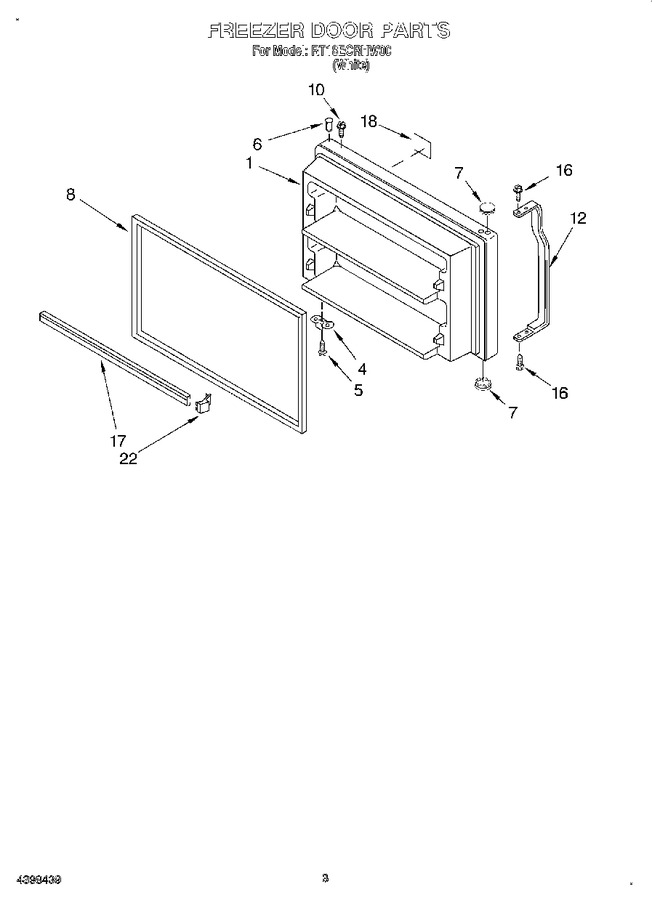

| 1 | 2182487 | Freezer Door (includes No.6 & No.8) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 8 | 2159327 | Door Gasket, Magnetic |
|
Immediately | $ 164.58 | ||||
| 10 | WP8281206 | Screw 8 X 1/2 (Replaces: 489028) |
|
$ 7.94 | |||||
| 12 | WP2202806W | Handle, Center (Replaces: 2202806W) |
|
$ 148.00 | |||||
| 16 | WP489357 | Screw, 8 X 5/8 (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 17 | 2201050 | Trim, Door Shelf (2) |
|
$ 43.26 | |||||
| 18 | 2200503 | Nameplate |
|
- | |||||
| 22 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 100 | 2200785 | Featurepak (includes 17, 22) Also See Ref.dr. & Shelf Pgs. |
|
- |
