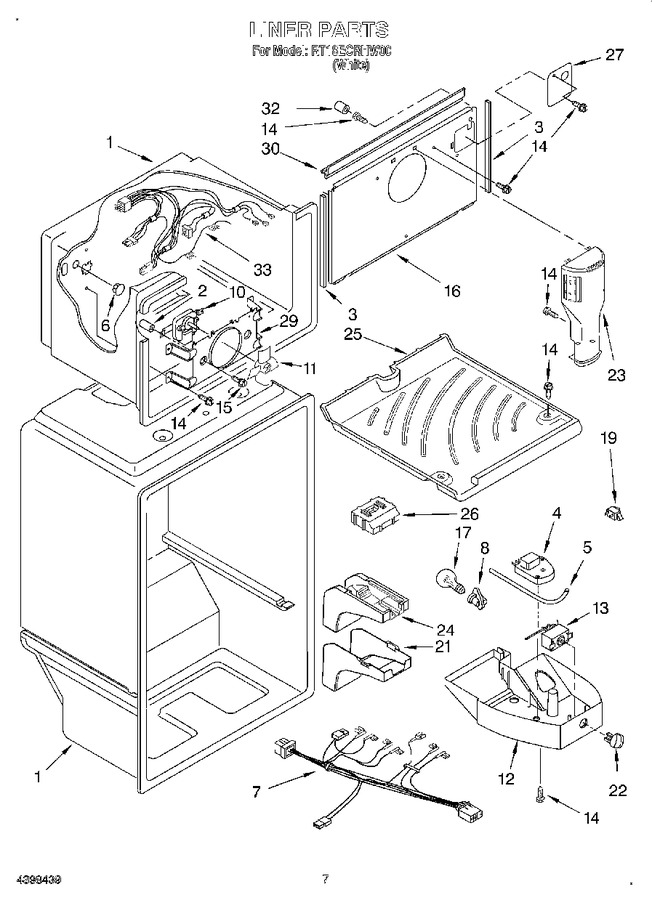

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189268)				$ 26.78
4	W10822278		Timer, Defrost   (Replaces: 2193084)			Immediately	$ 34.44
5	WP2196003		Thermostat Tube, Barrier   (Replaces: 2204640)				$ 7.95
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2204616		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
9	940014		Hole Plug				$ 18.33
10	2183833		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 66.15
12	2200948		Control Box		Appelez-nous	-
13	WP2204605		Thermostat Assy.   (Replaces: 2204605)			Immediately	$ 99.88
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	489412		Screw		Appelez-nous	-
16	2183154		Cover, Evaporator		Appelez-nous	-
17	W10887190		Light Bulb (2)   (Replaces: 2160708)			Immediately	$ 18.31
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
21	2176281		Cover, Air Diffuser				$ 41.64
22	WP2202885		Knob, Thermostat   (Replaces: 2175831)				$ 26.38
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 124.79
25	2172565		Freezer Floor		Appelez-nous	-
26	2200793		Air Diffuser, Top				$ 77.46
27	WP2217784		Cover, Hole   (Replaces: 2190688)				$ 44.97
29	2200641		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189267)				$ 26.78
32	WP487996		Cap   (Replaces: 487996)				$ 8.26
33	2200630		Wire Assembly, Freezer Compartment		Appelez-nous	-
38	2176341		Clip, Defrost Timer		Appelez-nous	-
