SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

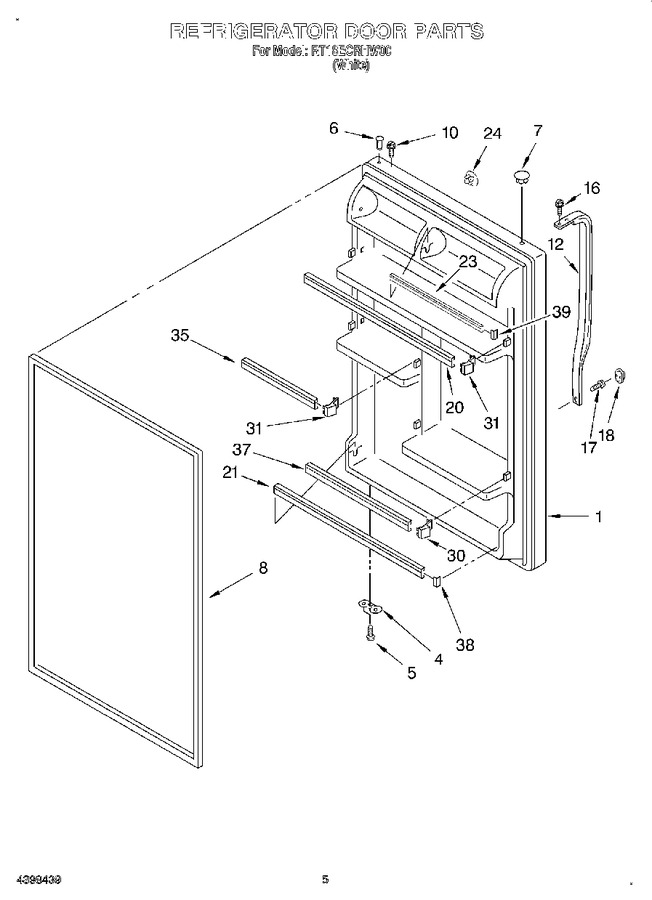

1	2183948		Refrigerator Door (includes No.6 & No.8)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
8	2159057		Door Gasket, Magnetic			Immediately	$ 164.66
10	WP8281206		Screw 8 X 1/2   (Replaces: 489028)				$ 7.94
12	WP2202807W		Handle, Center   (Replaces: 2202807W)				$ 155.22
16	WP489357		Screw, 8 X 5/8   (Replaces: 489357)			Immediately	$ 7.19
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 7.75
20	WP2201051		Trim, Door Shelf   (Replaces: 2201051)				$ 109.59
21	WPW10421484		Trim, Door Shelf   (Replaces: 2195949)				$ 129.76
23	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
24	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.40
30	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 13.07
31	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 12.62
35	2201052		Trim, Door Shelf				$ 28.91
37	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.18
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.65
100	2200785		Featurepak (includes 20, 21, 23, 30, 35, 37, 38) Also See Frz.dr. & Shelf Pgs.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
