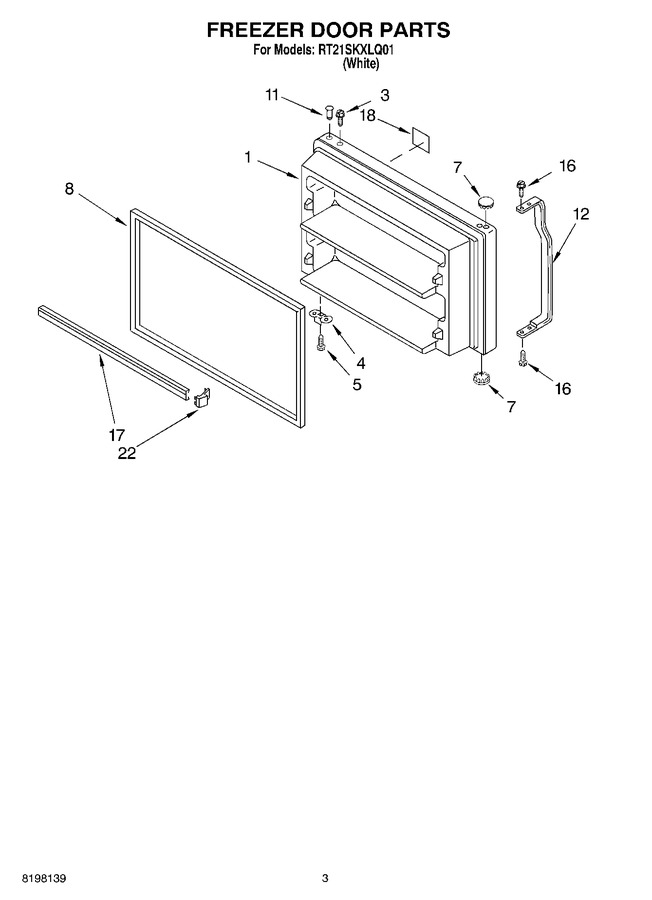

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Freezer Door (includes No.8 & No.11) (white) (Replaces: 2182489) |
|
$ 758.35 | |||||
| 3 | WP8281206 | Screw 8-18 X 1/2 (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (service) (Replaces: 2214967) |
|
$ 336.01 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 12 | WP2202806W | Handle, Center (white) (Replaces: 2202806W) |
|
$ 155.40 | |||||
| 16 | WP489357 | Screw 8-18 X 5/8 (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WP2201060 | Trim, Door Shelf (2) (Replaces: 2201060) |
|
$ 120.21 | |||||
| 18 | 2212881 | Nameplate (white) |
|
- | |||||
| 22 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 |
