SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional

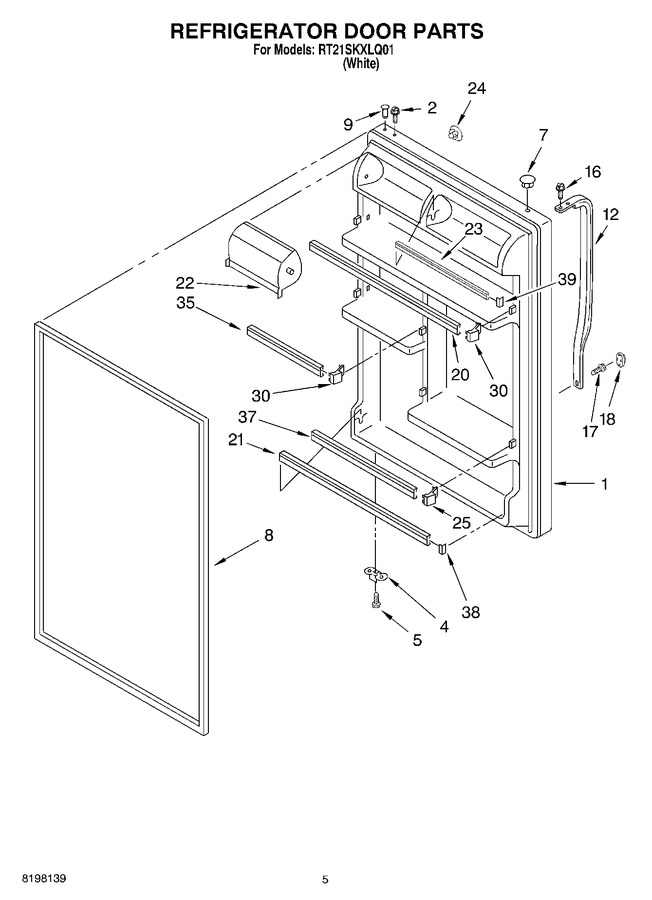

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183915		Refrigerator Door (includes No.8 & No.9) (white)		Appelez-nous	-
2	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
7	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
8	2159061		Door Gasket, Magnetic (service)   (Replaces: 2202875)			Immediately	$ 183.67
9	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
12	WP2202807W		Handle Center (white)   (Replaces: 2202807W)				$ 162.98
16	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
17	WP8281146		Screw 8-15 X 1/2   (Replaces: 8281146)				$ 8.18
18	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 8.14
20	WP2201061		Trim, Door Shelf   (Replaces: 2201061)				$ 124.32
21	WPW10421486		Trim, Door Shelf   (Replaces: 2195948)				$ 114.74
22	WP2218118		Door, Compartment   (Replaces: 2218118)				$ 81.92
23	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
25	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 13.25
30	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 13.72
35	WP2201062		Trim, Door Shelf   (Replaces: 2201062)				$ 8.42
37	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 91.78
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03

    View Diagram in Separate Window       Print Part List
