SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional

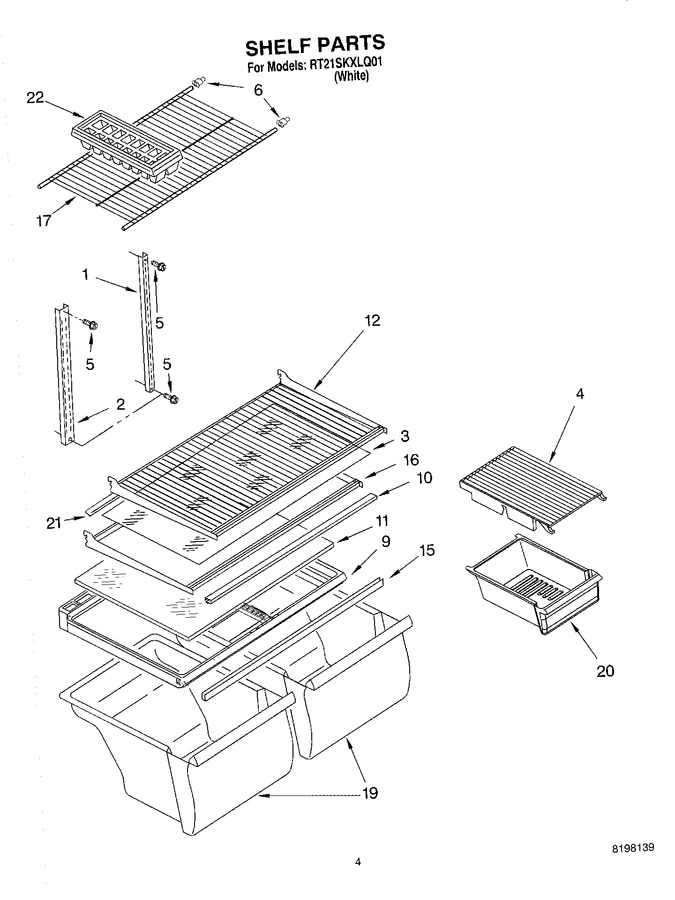

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2174693		Glass, Full Shelf				$ 95.31
4	2163848		Cover, Meat Pan				$ 71.41
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 279.10
10	2188691		Trim, Shelf (front)				$ 50.70
11	WP2176225		Glass, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2195398K		Pan Shelf, Cantilever		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2201104		Shelf, Full Cantilever				$ 110.02
17	2189454		Shelf, Freezer		Appelez-nous	-
19	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 179.19
20	WP2218127K		Pan, Meat   (Replaces: 2218127K)				$ 146.80
21	WP2188689		Trim, Shelf (rear)   (Replaces: 2188689)				$ 121.55
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84

    View Diagram in Separate Window       Print Part List
