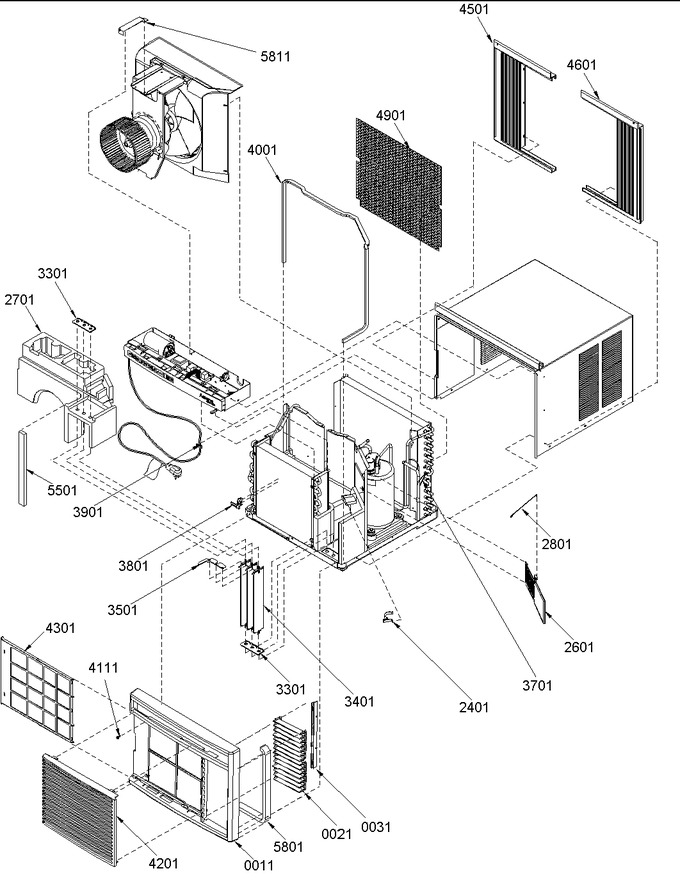

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control & Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20050202		Front Frame		Appelez-nous	-
21	20051001		Louver, Horizontal		Appelez-nous	-
31	20051102		Retainer, Louver		Appelez-nous	-
2401	20055502		Spring, Exh Door		Appelez-nous	-
2601	20051302		Door, Exhaust		Appelez-nous	-
2701	Y20055403		Scroll, Blower Top		Appelez-nous	-
2801	Y20055605		Actuator, Exh Door		Appelez-nous	-
3301	Y20051501		Base, Pivot		Appelez-nous	-
3401	20111201		Louver, Vert		Appelez-nous	-
3501	20051401		Gang Bar, Vertical Louver		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
3801	20075601		Clip, T`stat		Appelez-nous	-
3901	M0103902		Clamp, Speed		Appelez-nous	-
4001	10839801		Gasket 1=1ft.		Appelez-nous	-
4111	M0219730		Screw				$ 7.65
4201	20050301		Insert, Portable		Appelez-nous	-
4301	20055901		Filter, Portable Rac		Appelez-nous	-
4501	20055001		Curt Frame Assy-lh		Appelez-nous	-
4601	20055002		Curt Frame Assy-rh		Appelez-nous	-
4901	Y20083201		Grille, Condenser		Appelez-nous	-
5501	10839706		Gasket (per Foot)		Appelez-nous	-
5801	10839724		Gasket-1/2 X 1		Appelez-nous	-
5811	20082201		Tie Strap		Appelez-nous	-
