SELECT A DIAGRAM

01 - Chassis Assembly


02 - Chassis Assembly

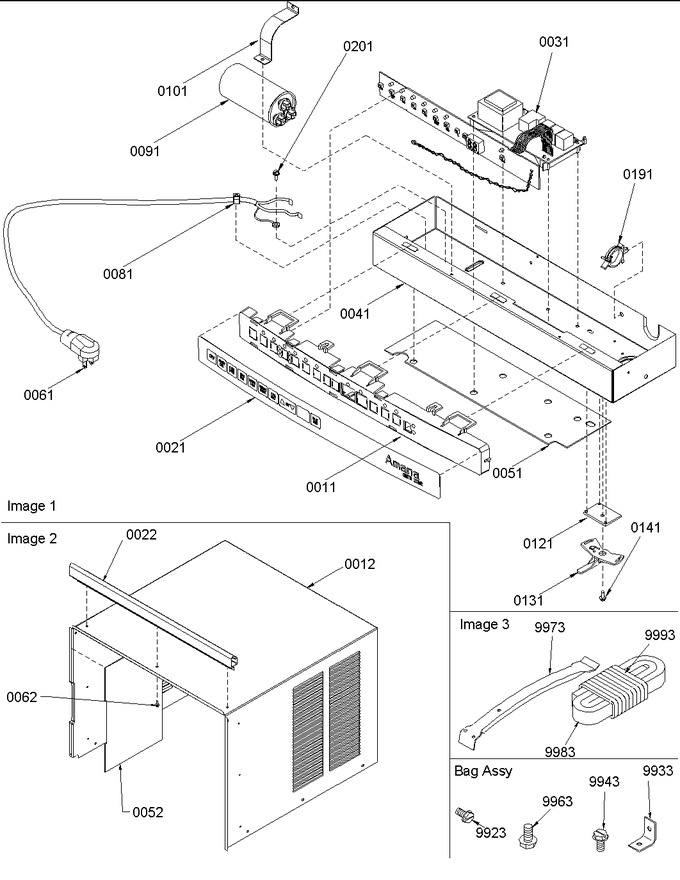

03 - Control & Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20052801		Housing, Control		Appelez-nous	-
12	20050002		Outercase Bnd		Appelez-nous	-
21	Y20057701		Overlay, Qz (portable)		Appelez-nous	-
22	20055101		Rail-top		Appelez-nous	-
31	20103504		Board,p.c. Control		Appelez-nous	-
41	Y20054601		Box-control		Appelez-nous	-
51	20069801		Insul, Closed Cell Foam		Appelez-nous	-
52	20059601		Insulation, 1/8 Closed Cell		Appelez-nous	-
61	Y20057501		Cord, Power		Appelez-nous	-
62	M0254917		Screw-sm		Appelez-nous	-
81	M0103902		Clamp, Speed		Appelez-nous	-
91	D6789062		Capacitor, Round		Appelez-nous	-
101	C6300511		Strap, Capacitor		Appelez-nous	-
121	20050701		Blocking, Indexing Vent		Appelez-nous	-
131	20050801		Lever-control, Vent		Appelez-nous	-
141	M0245104		Screw-sm		Appelez-nous	-
191	M0118702		Clip-guide		Appelez-nous	-
201	M0227803		Screw		Appelez-nous	-
9923	M0213032		Screw		Appelez-nous	-
9933	10661401		Brkt, Window Stop		Appelez-nous	-
9943	M0200001		Screw		Appelez-nous	-
9963	M0211020		Screw		Appelez-nous	-
9973	11075307		Support, Safety		Appelez-nous	-
9983	10839702		Gasket		Appelez-nous	-
9993	10839720		Gasket .500 X .250		Appelez-nous	-
NI	10839705		Gasket (1=1ft.)		Appelez-nous	-
NI	10228312		Kit-window Mounting-curtains		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
