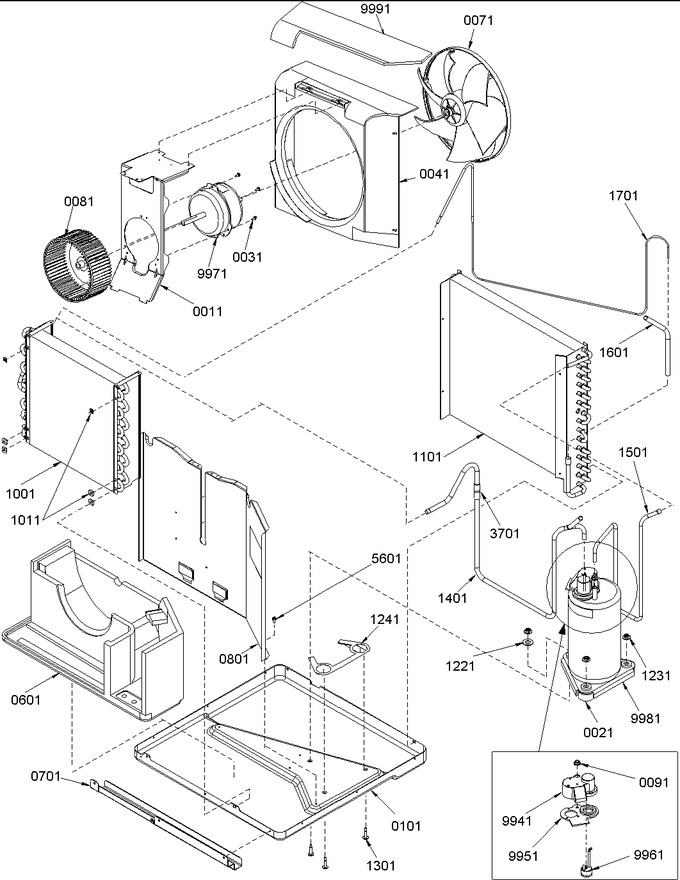

01 - Chassis Assembly
02 - Chassis Assembly
03 - Control & Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 20053906 | Bracket, Fan |
|
- | |||||
| 21 | C6466001 | Grommet |
|
- | |||||
| 31 | WP308544 | Screw-tap-r (Replaces: M0254830) |
|
Immediately | $ 8.30 | ||||
| 41 | 20051203 | Shroud-condenser |
|
- | |||||
| 71 | 20109601 | Fan, Condenser |
|
- | |||||
| 81 | 20109701 | Wheel, Blower |
|
- | |||||
| 91 | A9036601 | Nut |
|
- | |||||
| 101 | 20053703 | Basepan |
|
- | |||||
| 601 | 20055303 | Scroll, Blower Btm |
|
- | |||||
| 701 | Y20055201 | Rail-bottom |
|
- | |||||
| 801 | 20053806 | Panel, Partition |
|
- | |||||
| 1001 | 20123901 | Evap Coil Assy |
|
- | |||||
| 1011 | M0586001 | Screw |
|
- | |||||
| 1101 | 20123401 | Cond Coil Assy |
|
- | |||||
| 1221 | 20113001 | Washer |
|
- | |||||
| 1231 | 20112901 | Nut, Palnut |
|
- | |||||
| 1241 | 20099501 | Protector, Basepan |
|
- | |||||
| 1301 | 20109101 | Bolt, Shoulder |
|
- | |||||
| 1401 | 20124401 | Suction Weld |
|
- | |||||
| 1501 | 20119301 | Tube, Discharge |
|
- | |||||
| 1601 | B1394401 | Strainer |
|
- | |||||
| 1701 | 20123701 | Cap Tube Assy |
|
- | |||||
| 3701 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 5601 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 9941 | C6470701 | Cover Terminal |
|
- | |||||
| 9951 | B1434901 | Gasket, Term. Cover |
|
- | |||||
| 9961 | D6961673 | Overload |
|
- | |||||
| 9971 | 20109905 | Motor |
|
- | |||||
| 9981 | 11101511 | Compressor Tc-rga5485exa |
|
- | |||||
| 9991 | 20076902 | Insulation, Shroud |
|
- |
