Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4364022 Panel, Side (2) Appelez-nous -
2 4321257 Frame, Front Appelez-nous -
3 4363194 Rail, Base (2) Appelez-nous -
4 4157006 Base, Front Appelez-nous -
4 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

5 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

5 4157330 Nut, Speed Appelez-nous -
5 4157011 Support, Main (2) Appelez-nous -
6 4363237 Screw Appelez-nous -
6 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

6 4315382 Support, Rear (2) Appelez-nous -
9 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

9 4315493 Panel, Rear Appelez-nous -
10 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

10 4314939 Burner Box Appelez-nous -
11 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

11 4315490 Retainer, Insulation Appelez-nous -
12 4320567 Screw Appelez-nous -
12 4157022 Hinge, Door (2) Appelez-nous -
13 4315334 Seal, Door (2) (side) Appelez-nous -
14 4315335 Seal, Door (top) Appelez-nous -
15 4157027 Bumper, Cooktop (2) Appelez-nous -
21 4363195 Leg, Leveler (4) Appelez-nous -
22 4157332 Nut (4) Appelez-nous -
23 4157132 Safe Edge Appelez-nous -
24 4314952 Tube, Vent Appelez-nous -
25 WP8203546 Block, Terminal   (Replaces: 4157955) In-Stock Immediately $ 27.12

26 4363171 Channel Appelez-nous -
26 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

27 4157965 Support Appelez-nous -
29 4363286 Cover, Rear Appelez-nous -
29 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

30 4315522 Screw Appelez-nous -
30 4320496 Shield, Wire Appelez-nous -
31 WP308685 Screw   (Replaces: 4320498) In-Stock Immediately $ 7.08

31 4315000 Cover, Rear Appelez-nous -
31 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

32 4157325 Shield, Insulation Appelez-nous -
32 4320662 Screw Appelez-nous -
33 WP308685 Bracket, Mounting (screw)   (Replaces: 4320407) In-Stock Immediately $ 7.08

33 4314911 Bracket, Mounting (r.h.) Appelez-nous -
33 4314912 Bracket, Mounting (l.h.) Appelez-nous -
35 4179130 Disc, Thermo Appelez-nous -
36 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

36 4314955 Back, Bar Appelez-nous -
37 4314910 Bracket, Top Support Appelez-nous -
38 WP308685 Screw (2)   (Replaces: 4320498) In-Stock Immediately $ 7.08

38 4320523 Plate, Mounting Appelez-nous -
39 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 54.98

39 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 54.98

39 241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

39 4363057 Anti-tip Kit Appelez-nous -
LIT4320753 Instuctions, Installation Appelez-nous -
LIT4320752 Guide, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

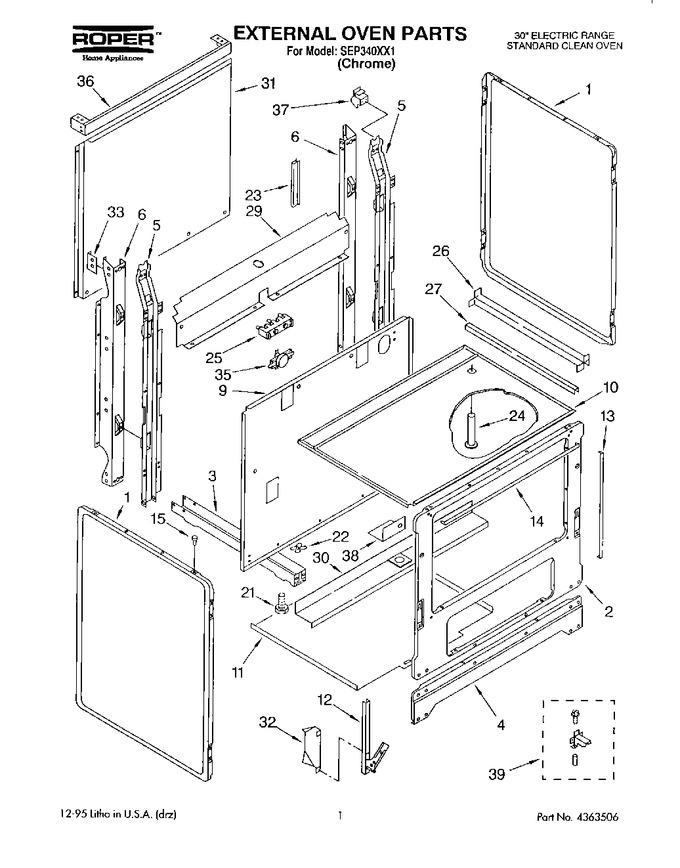

Diagram for SEP340XX1
