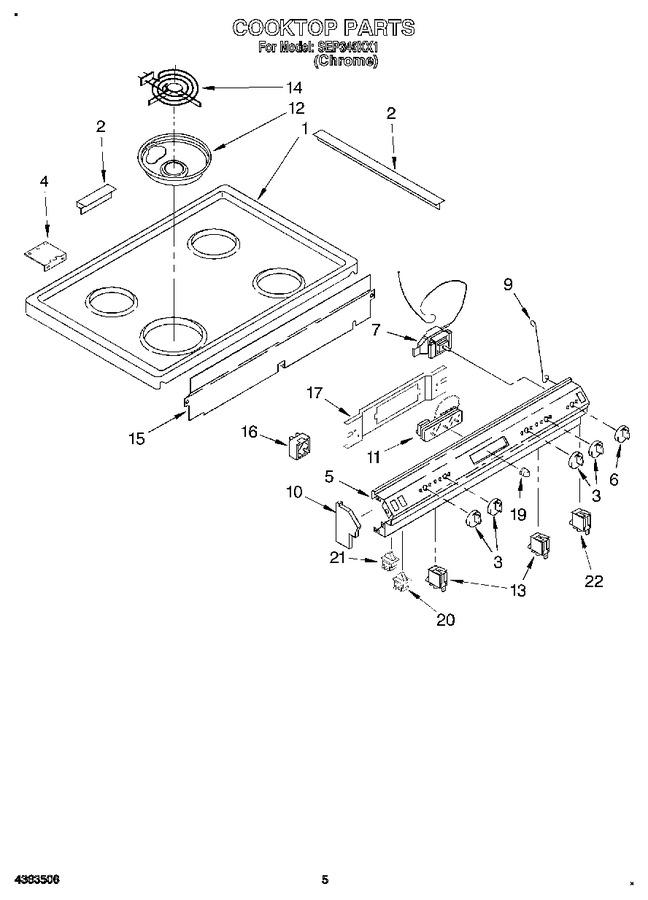

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Cooktop (screw) (Replaces: 4320498) |
|
Immediately | $ 7.08 | ||||
| 1 | 4157115 | Cooktop (nut, Speed) |
|
- | |||||
| 1 | 4363192 | Cooktop (chrome) |
|
- | |||||
| 2 | 4362867 | Kit, Maintop Trim |
|
- | |||||
| 3 | 4320345 | Knob, Burner (4) |
|
- | |||||
| 4 | 4157083 | Hinge, Cooktop |
|
- | |||||
| 5 | 4321259 | Panel, Manifold |
|
- | |||||
| 6 | 4320346 | Knob, Thermostat |
|
- | |||||
| 6 | 4320604 | Screw (2) |
|
- | |||||
| 7 | 4314949 | Thermostat |
|
- | |||||
| 9 | 4157010 | Rod, Support |
|
- | |||||
| 10 | 4314981 | Endcap (l.h.) |
|
- | |||||
| 10 | 4314980 | Endcap (r.h.) |
|
- | |||||
| 11 | 4321163 | Clock |
|
- | |||||
| 12 | W10196405RW | Bowl, Chrome (8``) (Replaces: 4157960) |
|
Immediately | $ 19.64 | ||||
| 12 | WPW10196406 | Bowl, Chrome (6``) (Replaces: 4157961) |
|
Immediately | $ 12.42 | ||||
| 13 | 4315030 | Light, Indicator (3) |
|
- | |||||
| 14 | 4315619 | Unit, Surface (6``) |
|
- | |||||
| 14 | 4315620 | Unit, Surface (8``) |
|
- | |||||
| 15 | 4157018 | Screw |
|
- | |||||
| 15 | 4315214 | Cover, Switch |
|
- | |||||
| 16 | W10900107 | Switch, Infinite (Replaces: 4314945) |
|
Immediately | $ 51.87 | ||||
| 16 | 4320604 | Screw |
|
- | |||||
| 17 | 4363064 | Mounting Bracket |
|
- | |||||
| 19 | 4363358 | Knob, Clock (3) |
|
- | |||||
| 20 | WP4314961 | Switch, Oven Light (Replaces: 4314961) |
|
$ 84.56 | |||||
| 21 | WP4314961 | Switch, Rocker (Replaces: 4314962) |
|
$ 84.56 | |||||
| 22 | 4314996 | Light, Indicator |
|
- |
