SELECT A DIAGRAM

Diagram for 01 - External Oven, Literature
01 - External Oven, Literature

Diagram for 02 - Internal Oven
02 - Internal Oven

Diagram for 03 - Oven Door And Storage Drawer
03 - Oven Door And Storage Drawer

Diagram for 04 - Cooktop
04 - Cooktop


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4321083 Bumper, Rubber ``l`` Shape Appelez-nous -
5 4363284 Liner Appelez-nous -
6 4364023 Track, Upper (left) Appelez-nous -
6 4364024 Track, Upper (right) Special Order $ 74.85

7 4363285 Liner, Door Appelez-nous -
8 4363287 Baffle, Door Appelez-nous -
8 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

9 4363236 Insulation Appelez-nous -
10 4363504 Panel, Drawer Appelez-nous -
12 4321253 Glass Appelez-nous -
13 4320536 Support Appelez-nous -
15 4320474 Screw Appelez-nous -
15 4320473 Handle Appelez-nous -
16 WP308685 Screw   (Replaces: 4320460) In-Stock Immediately $ 7.08

16 4321161 Frame, Door Appelez-nous -
17 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

17 4157128 Bumper (4) Appelez-nous -
18 4314916 Spacer (2) Appelez-nous -
19 4157208 Handle Appelez-nous -
19 4320579 Screw Appelez-nous -
22 4320477 Bumper, Rubber Appelez-nous -
22 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

29 WP308685 Screw   (Replaces: 4320407) In-Stock Immediately $ 7.08

29 4321201 Glide Stop Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

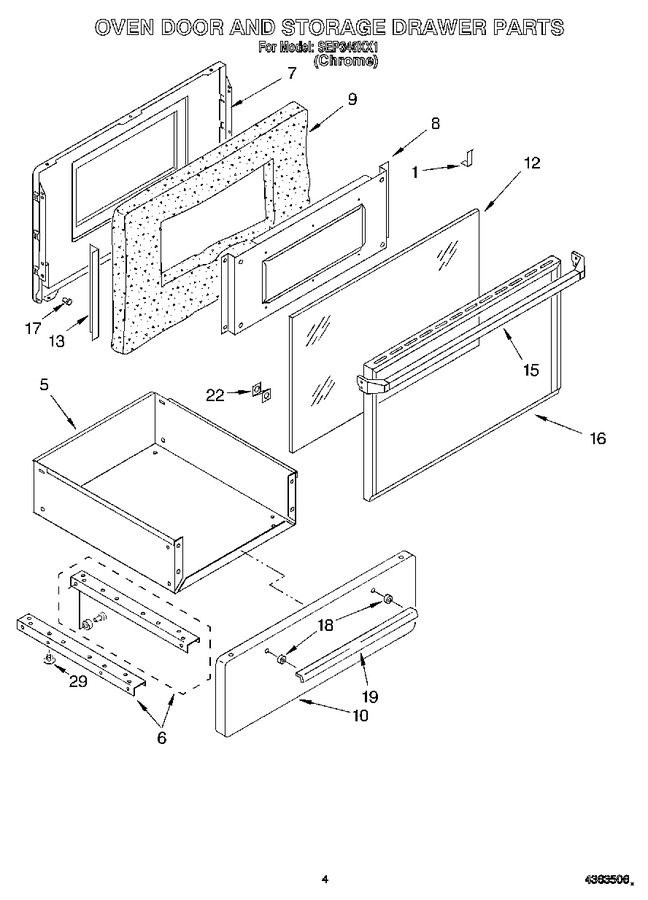

Diagram for SEP340XX1
