SELECT A DIAGRAM

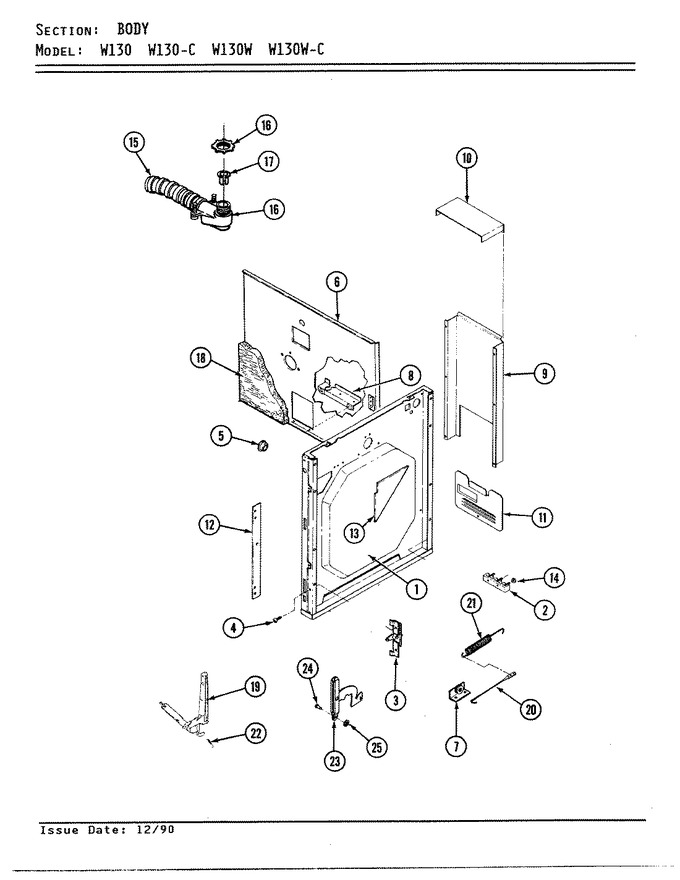

01 - Body
02 - Control Panel (blk)
03 - Door
04 - Internal Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P045-60 | Nut, Nylon | 1 |
|
- | ||||
| 1 | 4009W066-80 | Lining,inner Side(l) | 3 |
|
- | ||||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.56 | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 7.52 | |||
| 1 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.56 | ||||
| 1 | 7103P040-60 | Nut, Snap (wht) | 1 |
|
- | ||||
| 1 | 790356 | Lining, Inner Side | 1 |
|
- | ||||
| 2 | WPW10245259 | Block Terminal (Replaces: 790272) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 790352 | Hinge, L.h. | 1 |
|
- | ||||
| 3 | 790353 | Hinge, R.h. | 1 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.56 | ||||
| 5 | 8008P019-60 | Grommet | 1 |
|
- | ||||
| 6 | 7404P057-60 | Thermostat, Redundant | 1 |
|
- | ||||
| 6 | 8028P004-60 | Box, Breaker | 1 |
|
- | ||||
| 7 | 12400018 | Bracket, Cable Roller | 1 |
|
- | ||||
| 8 | 3605F148-80 | Plate, Conduit | 1 |
|
- | ||||
| 9 | 4001F051-51 | Housing,main Wire | 1 |
|
- | ||||
| 10 | 790349 | Cover Housing | 1 |
|
- | ||||
| 11 | 4005F302-51 | Cover Access | 1 |
|
- | ||||
| 12 | 790335 | Baffle Side | 1 |
|
- | ||||
| 13 | 4005F163-51 | Cover, Switch | 1 |
|
- | ||||
| 14 | 7103P007-60 | Nut, Level | 1 |
|
- | ||||
| 15 | 3414F066-51 | Tubing, Conduit | 1 |
|
- | ||||
| 15 | 7109P002-60 | Washer | 1 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 1 |
|
- | ||||
| 17 | 8018P002-60 | Sleeve, Tube | 1 |
|
- | ||||
| 18 | 4804F002-60 | Insulation, Rear | 1 |
|
- | ||||
| 19 | 7106P024-60 | Hinge (incl. Spring) | 3 |
|
- | ||||
| 20 | 790324 | Strap, Cable | 1 |
|
- | ||||
| 21 | 790323 | Spring | 1 |
|
- | ||||
| 22 | 04000040 | Spring, Mini-stanley | 3 |
|
- |
