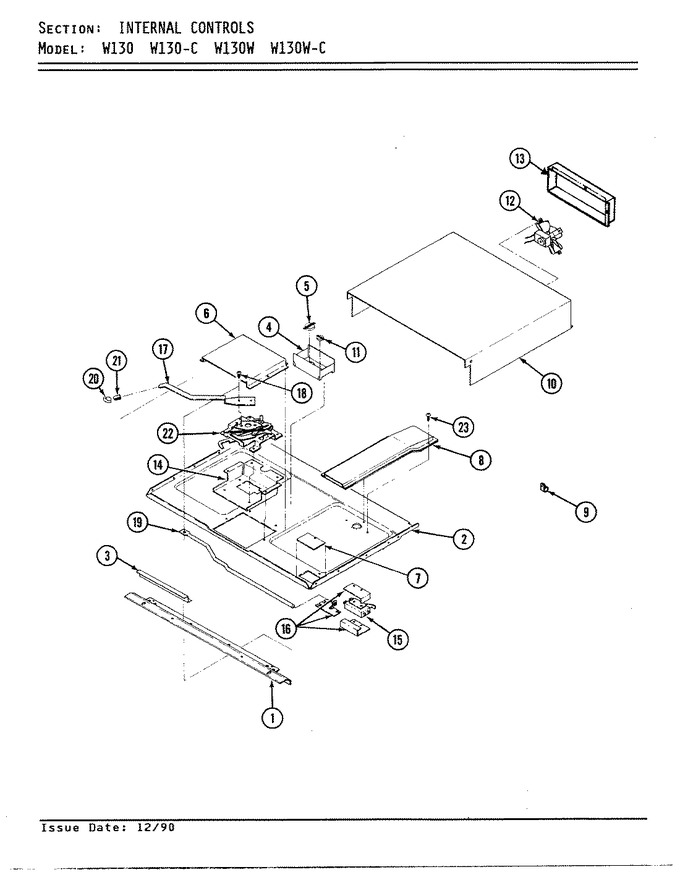

04 - Internal Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 16.74 | ||||
| 1 | 790350 | Front, Burner Box Bottom | 1 |
|
- | ||||
| 2 | 4011F180-80 | Bottom, Burner Box | 7 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 7.52 | |||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 1 |
|
Immediately | $ 7.52 | |||
| 2 | Y703357 | Latch Assy. | 1-11 |
|
- | ||||
| 3 | 790369 | Shield, Terminal | 1 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 7.52 | |||
| 4 | 790376 | Support, Thermal Disc | 1 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 7.36 | ||||
| 5 | 7403P199-60 | Switch, Hi Limit | 1 |
|
- | ||||
| 6 | 790346 | Cover, Catch Assy. | 1 |
|
- | ||||
| 7 | 790347 | Cover, Lock Switch | 1 |
|
- | ||||
| 8 | 4006W087-45 | Box Vent Assy | 1 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 10 | 790354 | Housing, Fan | 1 |
|
- | ||||
| 11 | 790327 | Switch, Thermal Disc | 1 |
|
- | ||||
| 12 | 790288 | Fan Assy. | 1 |
|
- | ||||
| 12 | 7417P002-60 | Connector, Pin | 1 |
|
- | ||||
| 12 | 7401P016-60 | Block, Terminal | 1 |
|
- | ||||
| 12 | 790381 | Resistor Assy. | 1 |
|
- | ||||
| 12 | 8008P014-60 | Grommet, Nylon | 1 |
|
- | ||||
| 13 | 790203 | Cover Fan | 1 |
|
- | ||||
| 14 | 3807F408-45 | Support, Catch Assy. | 12 |
|
- | ||||
| 14 | 790373 | Support, Latch Assy. | 1-11 |
|
- | ||||
| 14 | 3807F408-45 | Support, Catch Assy. | 7 |
|
- | ||||
| 15 | 7003P019-60 | Insulation, Switch (upper) | 1 |
|
- | ||||
| 15 | 7403P045-60 | Switch, Door Lock | 1 |
|
- | ||||
| 15 | 7003P039-60 | Insulation, Switch | 1 |
|
- | ||||
| 16 | 7101P031-60 | Screw | 1 |
|
- | ||||
| 16 | 790374 | Support, Lock Switch | 1 |
|
- | ||||
| 17 | 790304 | Lever, Lock | 1 |
|
- | ||||
| 17 | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.56 | ||||
| 18 | 790274 | Bolt | 1 |
|
- | ||||
| 19 | 790305 | Link, Lock Switch | 1 |
|
- | ||||
| 20 | 790298 | Knob, Door Lock | 1 |
|
- | ||||
| 21 | 790277 | Clip, Latch Handle | 1 |
|
- | ||||
| 22 | 790275 | Catch Assy. | 1 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 7.52 | |||
| 23 | Y702750 | Limit, Fan | 1 |
|
- |
