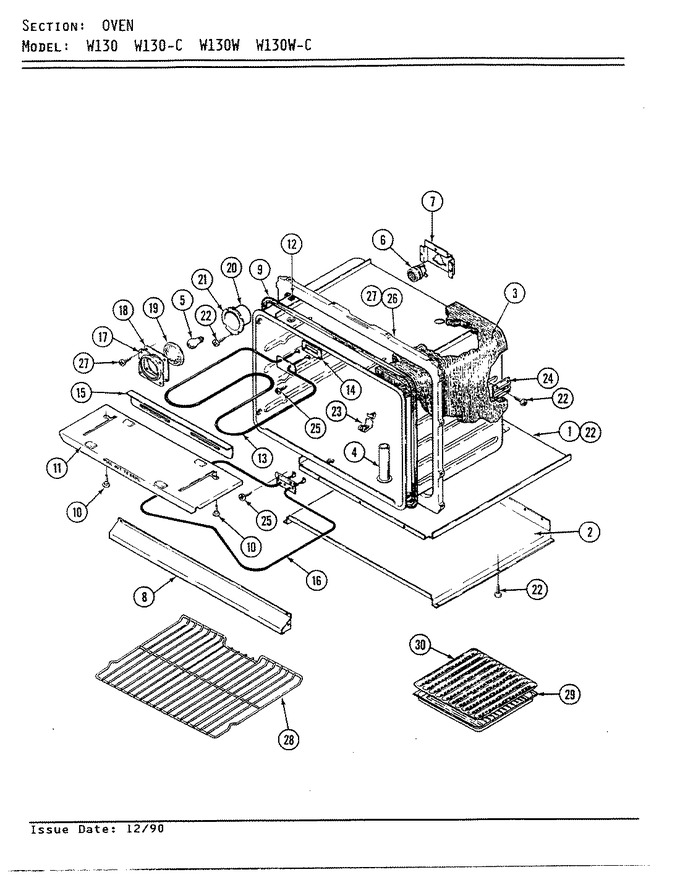

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790362 | Retainer, Insulation Bottom | 1 |
|
- | ||||
| 2 | 790365 | Shield, Bottom | 1 |
|
- | ||||
| 3 | 7002P046-60 | Insulation, Wrapper | 1 |
|
- | ||||
| 3 | 4804F001-60 | Insulation Top | 1 |
|
- | ||||
| 4 | 790464 | Tube, Oven Vent | 1 |
|
- | ||||
| 4 | 7505P041-60 | Catalyst Burner | 1 |
|
- | ||||
| 5 | 40A15 | Light-oven (Replaces: 790064) | 1 |
|
Immediately | $ 1.98 | |||
| 6 | 790312 | Receptacle, Lamp | 1 |
|
- | ||||
| 7 | 790342 | Bracket, Lamp Receptacle | 1 |
|
- | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 16.74 | ||||
| 8 | 790367 | Shield Assy., Lower (black) | 1 |
|
- | ||||
| 8 | 3604W155-70 | Shield, Lower Vent (blk) | 14 |
|
- | ||||
| 9 | 790290 | Gasket, Oven | 1 |
|
- | ||||
| 10 | 790314 | Screw, Broil Shield | 1 |
|
- | ||||
| 11 | 790366 | Shield, Broil | 1 |
|
- | ||||
| 12 | WP488130 | Nut, Keps Black (Replaces: 7103P062-60) | 1 |
|
$ 6.59 | ||||
| 13 | WPY04000048 | Element, Broil (Replaces: Y04000048) | 1 |
|
$ 168.61 | ||||
| 13 | 8004P013-60 | Clip, Broil Element Support | 1 |
|
- | ||||
| 14 | 790214 | Gasket | 1 |
|
- | ||||
| 15 | Y790262 | Support, Broil Element | 1 |
|
- | ||||
| 16 | WPY04000041 | Element, Bake (Replaces: Y04000041) | 1 |
|
$ 139.86 | ||||
| 17 | 790364 | Retainer, Lamp Guard | 1 |
|
- | ||||
| 18 | 790216 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 19 | 790224 | Glass, Lampguard | 1 |
|
- | ||||
| 20 | 790355 | Housing, Lamp | 1 |
|
- | ||||
| 21 | 790215 | Gasket,lampguard | 1 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 7.52 | |||
| 23 | WP7112P004-60 | Clip, Thermostat Bulb (Replaces: 790055) | 1 |
|
Immediately | $ 11.63 | |||
| 24 | 790375 | Support Oven Rear | 1 |
|
- | ||||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 1 |
|
Immediately | $ 7.52 | |||
| 26 | 7101P005-60 | Screw | 1 |
|
- | ||||
| 26 | 790351 | Front, Oven Upper | 1 |
|
- | ||||
| 27 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 1 |
|
$ 6.80 | ||||
| 28 | 790311 | Rack, Oven | 1 |
|
- | ||||
| 29 | 790359 | Pan, Broiler | 1 |
|
- | ||||
| 30 | 4396923 | Insert, Broiler Pan (Replaces: 790232) | 1 |
|
Immediately | $ 54.64 |
