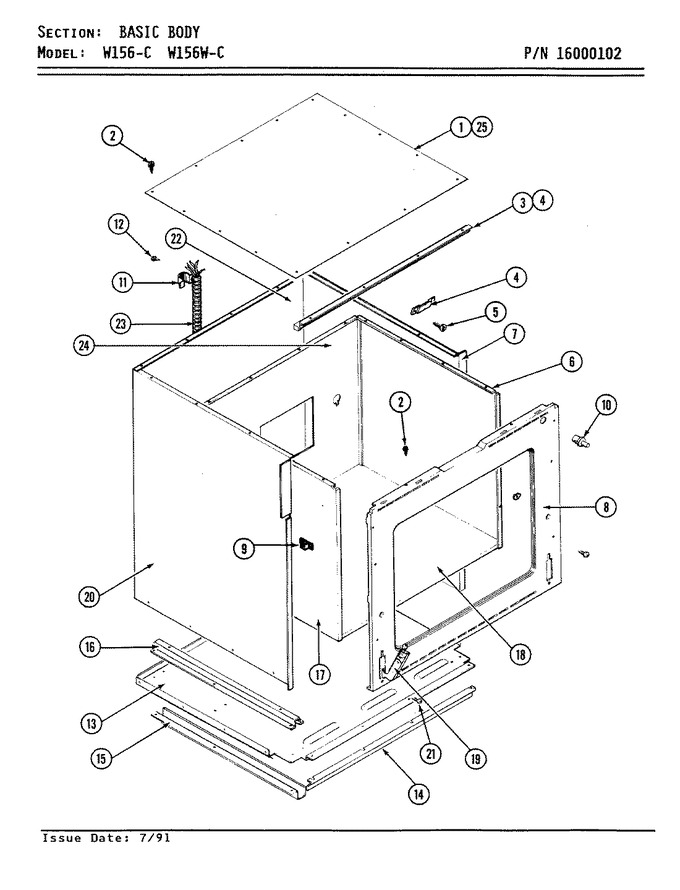

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701681 | Top (outer) | 1 |
|
- | ||||
| 2 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.88 | |||
| 3 | 703095 | Support, Top | 1 |
|
- | ||||
| 4 | 701680 | Bracket, Vent Tube | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.43 | |||
| 6 | 701676 | Panel, Side (rt) | 1 |
|
- | ||||
| 7 | 701672 | Panel, Outer (rt) | 1 |
|
- | ||||
| 8 | 703609 | Closure, Front | 1 |
|
- | ||||
| 9 | DE81-06242A | Spacer, Side (Replaces: 703253) | 1 |
|
$ 284.36 | ||||
| 10 | 701666 | Switch, Door | 1 |
|
- | ||||
| 11 | DE81-08030A | Clamp, Conduit (Replaces: 701692) | 1 |
|
$ 131.01 | ||||
| 12 | WP7101P126-60 | Screw (Replaces: Y708310) | 1 |
|
Immediately | $ 7.52 | |||
| 13 | 701668 | Panel, Bottom (outer) | 1 |
|
- | ||||
| 14 | 701848 | Trim, Oven (lower) | 1 |
|
- | ||||
| 15 | 700596 | Rail, Bottom | 1 |
|
- | ||||
| 16 | DE81-06547A | Support, Bottom (Replaces: 701667) | 1 |
|
$ 163.64 | ||||
| 17 | DE81-09195A | Panel, Side (lt) (Replaces: 701697) | 1 |
|
$ 779.04 | ||||
| 18 | DE81-07471A | Panel, Bottom (Replaces: 701669) | 1 |
|
$ 320.80 | ||||
| 18 | 701701 | Angle, Oven Support | 1 |
|
- | ||||
| 19 | Y703419 | Hinge | 1 |
|
- | ||||
| 20 | 701695 | Panel, Outer (lt) | 1 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 13.25 | |||
| 20 | Y700556 | Clip, J | 1 |
|
- | ||||
| 21 | 701683 | Bracket, Hat (rear) | 1 |
|
- | ||||
| 21 | WP3196183 | Screw (Replaces: Y701664) | 1 |
|
Immediately | $ 7.36 | |||
| 22 | 701691 | Panel, Rear (outer) | 1 |
|
- | ||||
| 23 | 705357 | Cable, Wire | 1 |
|
- | ||||
| 24 | 704808 | Panel, Rear | 1 |
|
- | ||||
| 24 | 702007 | Breaker (15 Amp) | 1 |
|
- | ||||
| 24 | 702008 | Breaker (30 Amp) | 1 |
|
- | ||||
| 24 | 704165 | Box, Breaker | 1 |
|
- |
