Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704684 Panel, Top 1 Appelez-nous -
2 702795 Tube, Vent 1 Appelez-nous -
3 WP12990527 Screw   (Replaces: Y708955) 1 In-Stock Immediately $ 7.88

4 701687 Thermostat 1 Appelez-nous -
5 705360 Latch, Automatic 1 Appelez-nous -
6 Y702727 Limit, Oven 1 Appelez-nous -
7 Y702711 Terminal 1 Appelez-nous -
8 71002058 Screw   (Replaces: Y702124) 1 Special Order $ 6.11


    View Diagram in Separate Window     Print Icon   Print Part List

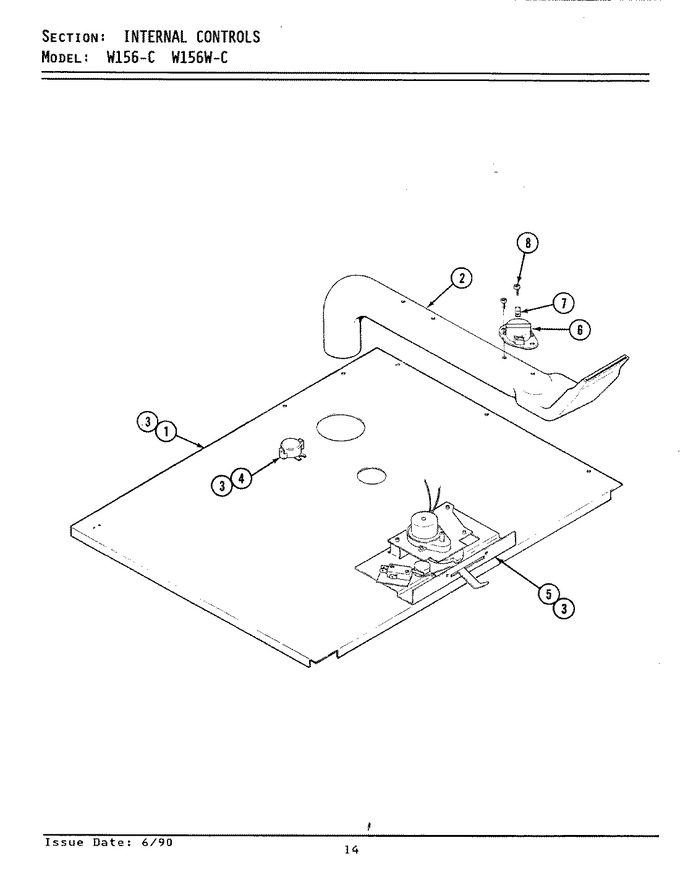

Diagram for W156-C
