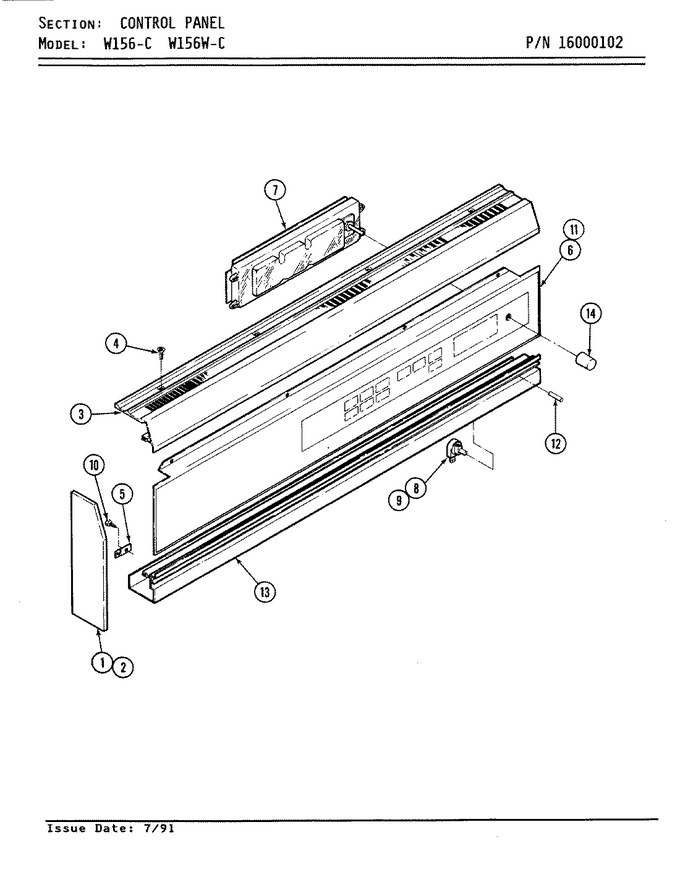

04 - Control Panel (w156-c & W156w-c)


05 - Door (w156-c & W156w-c)


06 - Internal Controls (w156-c & W156w-c)


07 - Oven Liner (w156-c & W156w-c)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y704692		Cap, End (rt/blk)	1	Appelez-nous	-
2	Y704691		Cap, End (lt/blk)	1	Appelez-nous	-
3	704690		Extrusion, Top (blk)	1	Appelez-nous	-
4	704714		Screw, Trim	1	Appelez-nous	-
5	701609		Angle, Attachment	1	Appelez-nous	-
6	Y712593		Panel, Back (blk)	1	Appelez-nous	-
7	Y704728		Clock	1	Appelez-nous	-
8	704797		Switch, Push (blk)	1	Appelez-nous	-
9	704730		Bracket, Switch	1	Appelez-nous	-
10	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.88
11	704704		Harness, Wire (j2)	1	Appelez-nous	-
12	704798		Extension, Switch (blk)	1	Appelez-nous	-
13	704690		Extrusion, Top (blk)	1	Appelez-nous	-
14	04100038		Plate, End Cap	1	Appelez-nous	-
14	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	1			$ 12.74
