01 - Cooktop Parts

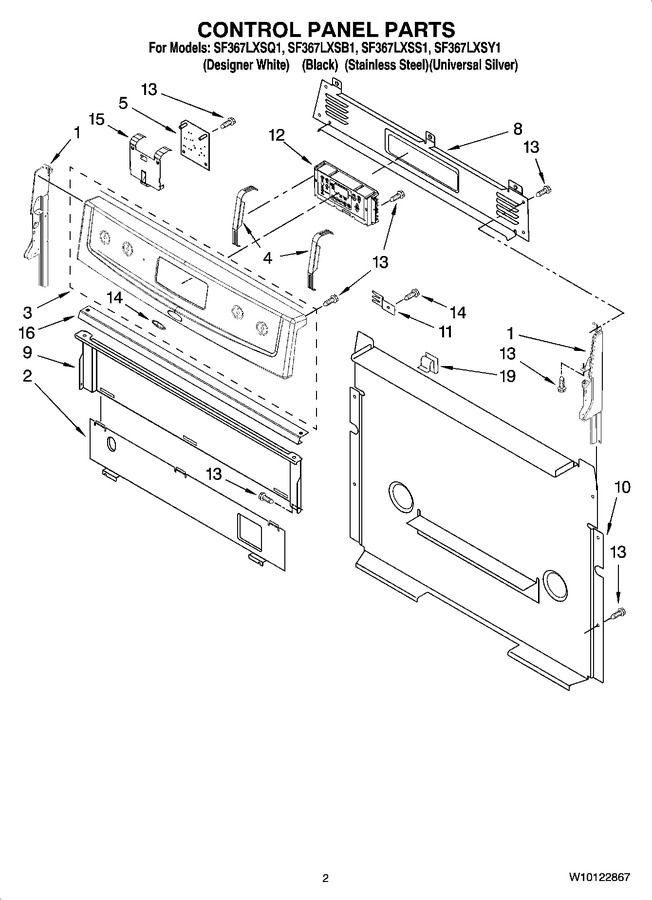

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (left Hand-black) (Replaces: W10009080) |
|
$ 146.50 | |||||
| 1 | W11219370 | Endcap (right Hand White) (Replaces: W10009050) |
|
$ 57.93 | |||||
| 1 | W11219665 | Endcap (right Hand-black) (Replaces: W10009090) |
|
$ 40.44 | |||||
| 1 | W11219365 | Endcap (left Hand White) (Replaces: W10009040) |
|
$ 40.43 | |||||
| 2 | 8053505 | Shield, Lower Heat |
|
$ 157.99 | |||||
| 3 | 9762094 | Panel, Control (stainless Model) |
|
- | |||||
| 3 | 9762093 | Panel, Control (black) |
|
- | |||||
| 3 | 9762091 | Panel, Control (white) |
|
- | |||||
| 4 | 9762078 | Bracket, Eoc Mount |
|
$ 38.13 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 393.86 | ||||
| 8 | 9756301 | Cover, Upper |
|
$ 51.01 | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8273132 | Cover, Lower |
|
- | |||||
| 11 | 8523412 | Bracket, Support |
|
$ 159.90 | |||||
| 12 | WPW10108190 | Control, Range (black) (Replaces: W10108190) |
|
Immediately | $ 440.69 | ||||
| 12 | WPW10108190 | Control, Range (white) (Replaces: W10108180) |
|
Immediately | $ 440.69 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 15 | 9762726 | Brkt-mntg, Dsi |
|
$ 29.39 | |||||
| 16 | 9762095 | Brkt-mntg, Console |
|
- | |||||
| 19 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 |
