01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

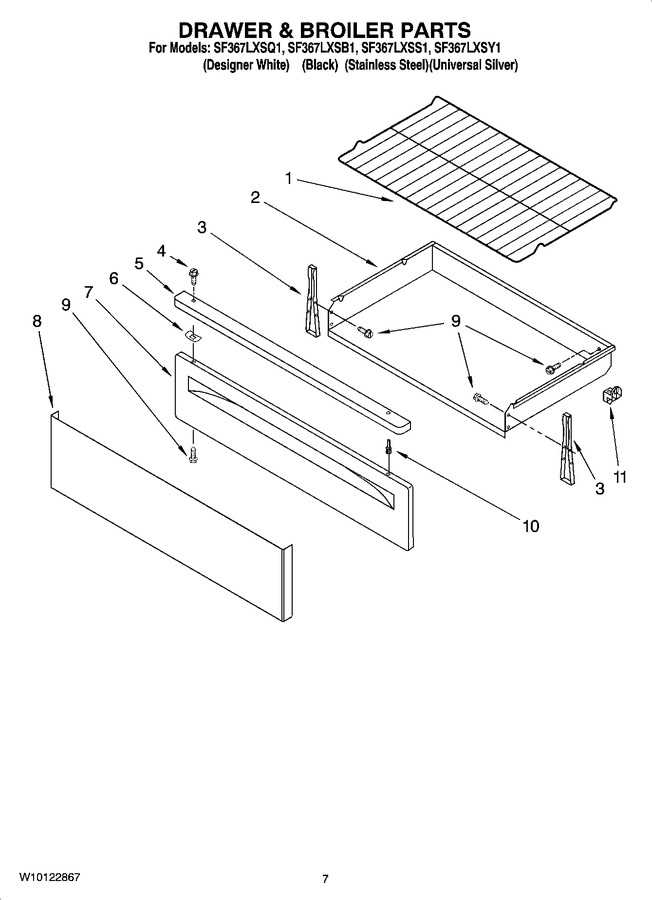

05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 26.17 | |||||
| 4 | WPW10031790 | Screw, For Stainless Steel And Universal Silver Models (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 5 | 9757219 | Handle (stainless Steel Model) |
|
- | |||||
| 5 | 9762251 | Handle (universal Silver Model) |
|
$ 86.77 | |||||
| 6 | WP9781235 | Clip (Replaces: 9781235) |
|
$ 11.96 | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: W10022100) |
|
$ 201.51 | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: W10022090) |
|
$ 201.42 | |||||
| 8 | 9755797 | Panel, Drawer Front For Stainless Steel And Universal Silver Models |
|
- | |||||
| 9 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 10 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 | ||||
| 10 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 10.67 | ||||
| 11 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 |
