Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9761975 Trim, Top (white) Special Order $ 82.31

1 WP9762391 Trim, Top (black)   (Replaces: 9762391) Special Order $ 199.02

1 WP9762391 Trim, Top (stainless Steel Model)   (Replaces: 9762394) Special Order $ 199.02

1 W10067560 Trim, Top (universal Silver Model) Appelez-nous -
2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 8.69

3 9761983 Handle, Door (black) Special Order $ 116.42

3 9761985 Handle, Door (stainless Steel) Appelez-nous -
3 9761982 Handle, Door (white) Special Order $ 125.85

4 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 355.13

5 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 8.74

6 WP8053948 Glass, Inner (2)   (Replaces: 9758162) Special Order $ 178.28

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 84.86

8 W11502236 Strap, Door   (Replaces: W10113759) In-Stock Immediately $ 26.36

9 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 96.54

10 W10347464 Stainless Steel And Universal Silver Models   (Replaces: 9761496) In-Stock Immediately $ 127.60

10 W10347466 Hinge, Door   (Replaces: 9761493) In-Stock Immediately $ 209.37

11 W11539580 Retainer, Insul.   (Replaces: 9761357) Special Order $ 221.30

12 WP8523172 Trim, Door Side Left Hand (white)   (Replaces: 8523172) In-Stock Immediately $ 69.93

12 8184858 Trim, Door Side Right Hand (gray)   (Replaces: W10113925) Special Order $ 160.81

12 8184858 Trim, Door Side Left Hand (gray)   (Replaces: W10113926) Special Order $ 160.81

12 WP8523166 Trim, Door Side Right Hand (white)   (Replaces: 8523166) In-Stock Immediately $ 84.23

12 W10761014 Trim, Door Side Right Hand (black)   (Replaces: 8523165) In-Stock Immediately $ 72.96

12 W10761018 Trim, Door Side Left Hand (black)   (Replaces: 8523171) In-Stock Immediately $ 53.77

13 9756435 Glass, Outer Door (stainless Steel And Universal Silver Models) Appelez-nous -
13 WPW10118454 Glass, Outer Door (white)   (Replaces: W10075980) Special Order $ 309.44

13 WPW10118455 Glass, Outer Door (black)   (Replaces: W10075990) In-Stock Immediately $ 316.86

14 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.19

15 3196025 Clip, Door Glass Special Order $ 20.10

18 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 7.82

19 W11594186 Trim, Bottom (white)   (Replaces: 8523175) In-Stock Immediately $ 58.45

19 WP8523177 Trim, Bottom (black)   (Replaces: 8523177) In-Stock Immediately $ 157.96

19 W10067550 Trim, Bottom (universal Silver Model) Appelez-nous -
19 WP8523180 Trim, Bottom (stainless Steel Model)   (Replaces: 8523180) Special Order $ 160.95

21 3196794 Bracket, Window Special Order $ 24.34

22 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.19

23 9761517 Clip, Door Mntg (2) Special Order $ 45.82

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 26.45

242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 83.07

261582 Grease Appelez-nous -
WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

3196696 Clip, Harness Appelez-nous -
3195927 Tie,wire Appelez-nous -
W11244557 Screw   (Replaces: 3196173) Special Order $ 13.61

16515 Clip, Harness   (Replaces: 313438) Special Order $ 19.55

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 49.29

3196896 Clip-wire Appelez-nous -
3400964 Clip, Wire Special Order $ 84.76

WP3196174 Screw, Ground   (Replaces: 3196174) In-Stock Immediately $ 7.82

W10045060 Harness, Grnd Dsi Special Order $ 8.54

8523599 Harness, Wire (cooktop Spark) Special Order $ 139.59

8524207 Harness, Bake & Broil Ignitor Special Order $ 52.99

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

W10082160 Harness, Main Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
W11447673 Anti-tip Kit   (Replaces: W10017440) Special Order $ 31.82

4396923 Pan - Broiler In-Stock Immediately $ 57.82

241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 89.66

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 57.04

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -

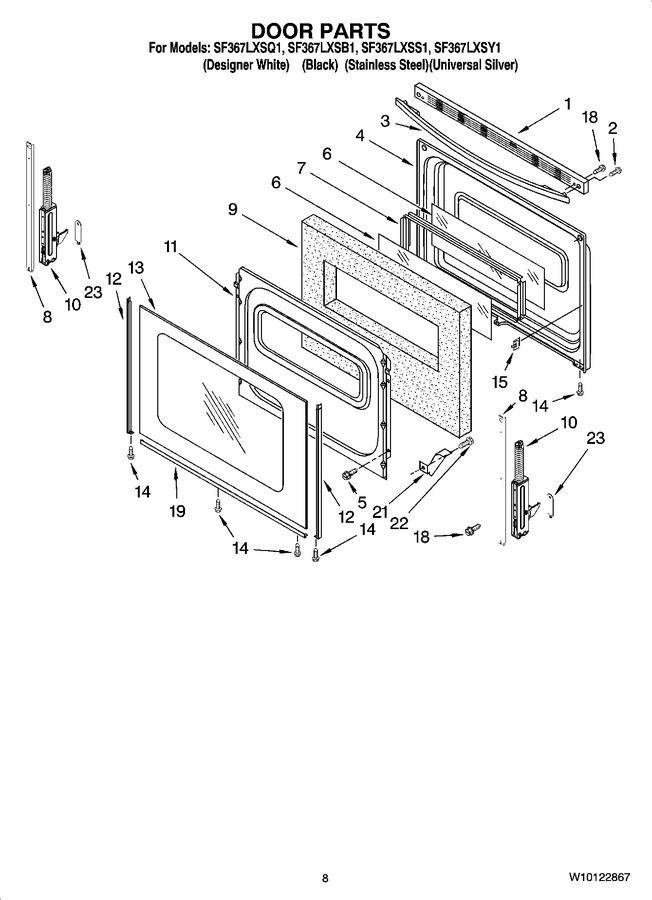

    View Diagram in Separate Window     Print Icon   Print Part List
