01 - Cabinet & Door
02 - Control Panel

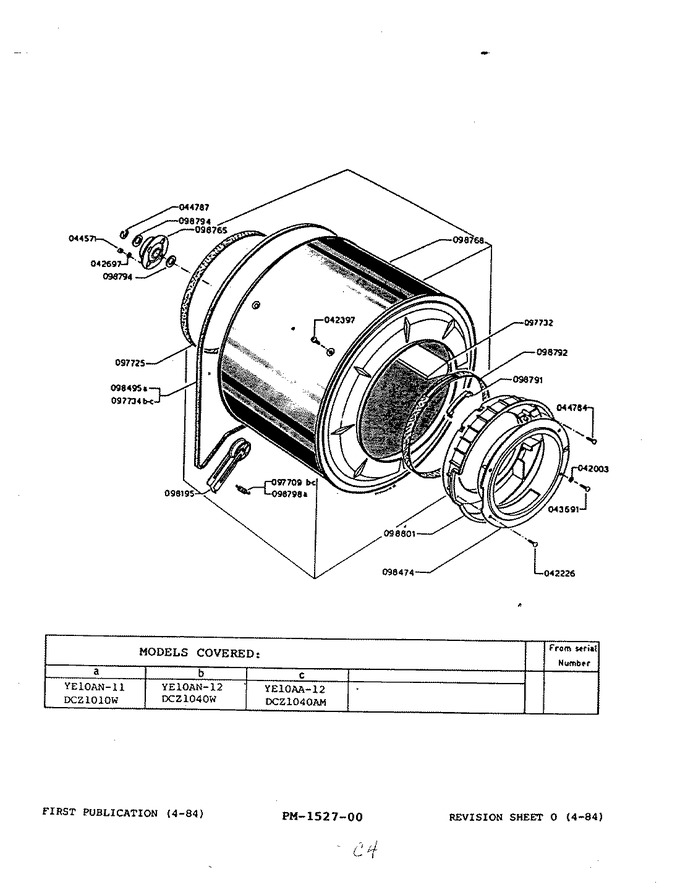

03 - Drum
04 - Motor (ye10an12)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 042003 | Flat Washer |
|
- | |||||
| 2 | 042226 | Screw |
|
- | |||||
| 3 | 042397 | Screw |
|
- | |||||
| 4 | 042697 | Lockwasher |
|
- | |||||
| 5 | 043691 | Screw |
|
- | |||||
| 6 | 044571 | Nut |
|
- | |||||
| 7 | 044784 | Screw |
|
- | |||||
| 8 | 044787 | Spring Ring |
|
- | |||||
| 9 | 097709 | Spring |
|
- | |||||
| 10 | 097725 | Rear Gasket |
|
- | |||||
| 11 | 097732 | Drum Pad |
|
$ 65.71 | |||||
| 12 | 097734 | Drum Belt |
|
- | |||||
| 13 | 00098195 | Idler Pulley (Replaces: 098195) |
|
$ 29.55 | |||||
| 14 | 098474 | Door Frame |
|
- | |||||
| 16 | 098765 | Rear Bearing |
|
- | |||||
| 17 | 098768 | Drum |
|
- | |||||
| 18 | 098791 | Bearing |
|
- | |||||
| 19 | 098792 | Front Gasket |
|
- | |||||
| 20 | 098794 | Spacer Washer |
|
- | |||||
| 22 | 098801 | Door Flange |
|
- |
