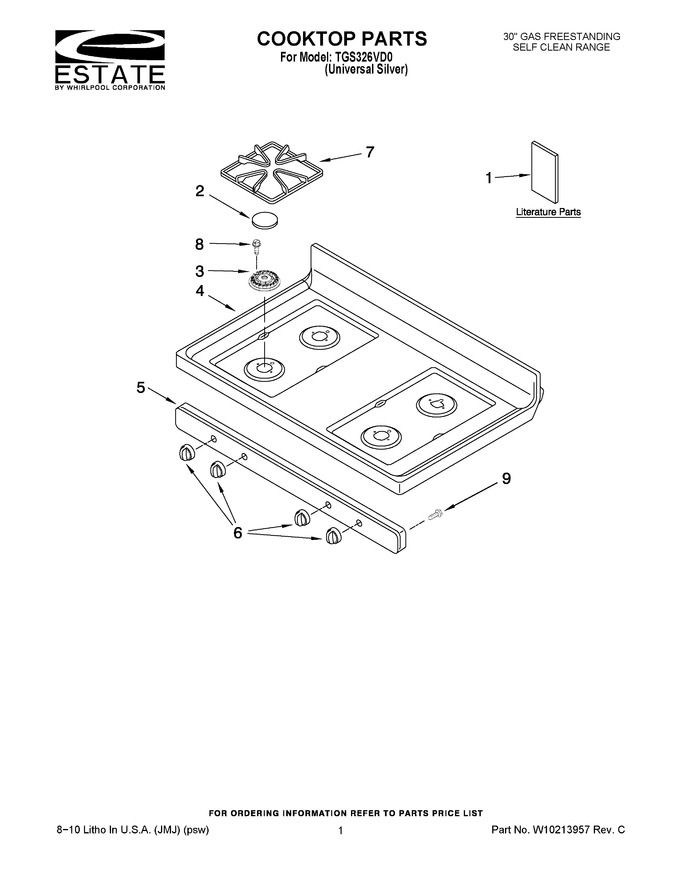

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196161 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | W10204320 | Guide, Use & Care |
|
- | |||||
| 1 | W10198635 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10169984 | Cap, Burner (large (3)) (Replaces: W10169984) |
|
$ 71.75 | |||||
| 2 | WPW10169985 | Cap, Burner (small (1)) (Replaces: W10169985) |
|
$ 66.65 | |||||
| 3 | WPW10406283 | Burner (lf-lr-rf) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 3 | WPW10406243 | Burner (rr) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | 8272253 | Cooktop |
|
- | |||||
| 5 | 8523855 | Panel, Manifold |
|
$ 176.18 | |||||
| 6 | WP8273103 | Knob, Burner (4) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 7 | WPW10268483 | Grate, Burner (4) (Replaces: 8053458) |
|
$ 140.02 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
