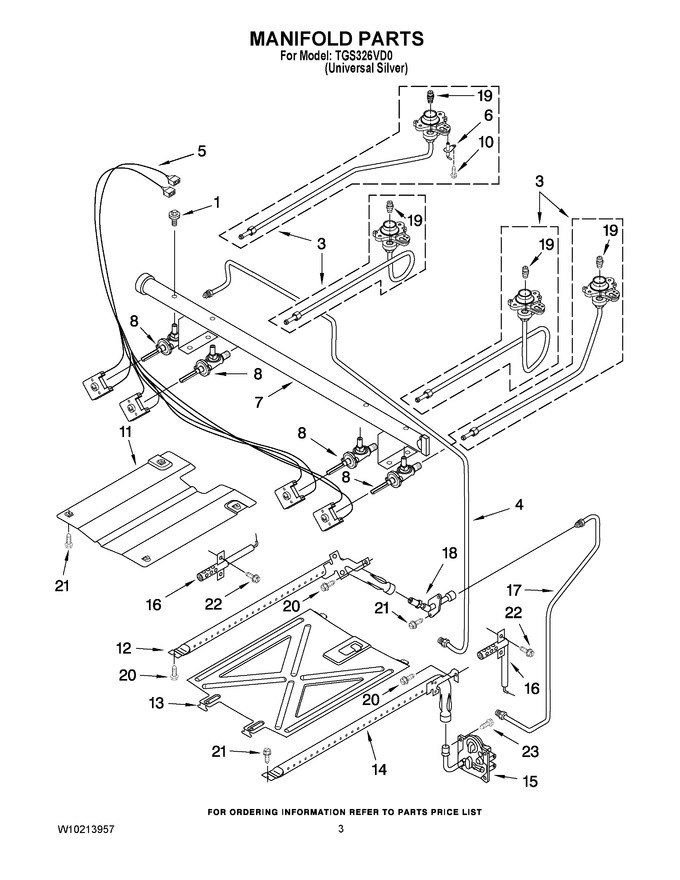

03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8273096 | Screw, Valve |
|
$ 5.27 | |||||
| 3 | W10177326 | Tubing, Burner (left Rear) |
|
- | |||||
| 3 | W10177163 | Tubing, Burner (right Rear) |
|
- | |||||
| 3 | W10177325 | Tubing, Burner (left Front) |
|
- | |||||
| 3 | W10177323 | Tubing, Burner (right Front) |
|
- | |||||
| 4 | W10176502 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces: 8523406) |
|
$ 228.23 | |||||
| 6 | WPW10216419 | Electrode (4) (Replaces: W10216419) |
|
Immediately | $ 36.72 | ||||
| 7 | W10169928 | Pipe, Manifold |
|
- | |||||
| 8 | 8273004 | Valve ((1)rr) |
|
$ 122.16 | |||||
| 8 | WP9757218 | Valve ((3)lf,rf,lr) (Replaces: 9757218) |
|
$ 269.16 | |||||
| 10 | WP8273062 | Screw (4) (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 239.36 | ||||
| 13 | 8053970 | Spreader, Flame (oven) |
|
- | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | WPW10293048 | Valve, Gas (Replaces: 9761959) |
|
Immediately | $ 464.79 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 48.07 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3186489 | Fitting, Broiler |
|
$ 64.58 | |||||
| 19 | WPW10170507 | Orifice, Burner (left Rear) (Replaces: W10170507) |
|
$ 97.85 | |||||
| 19 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 19 | WPW10170508 | Orifice, Burner (right & Left Front) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 20 | 3196265 | Screw |
|
- | |||||
| 21 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 22 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 23 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| NI | 8523416 | Spuds, Lp Gas (kit Of 4) |
|
- |
