01 - Cooktop Parts

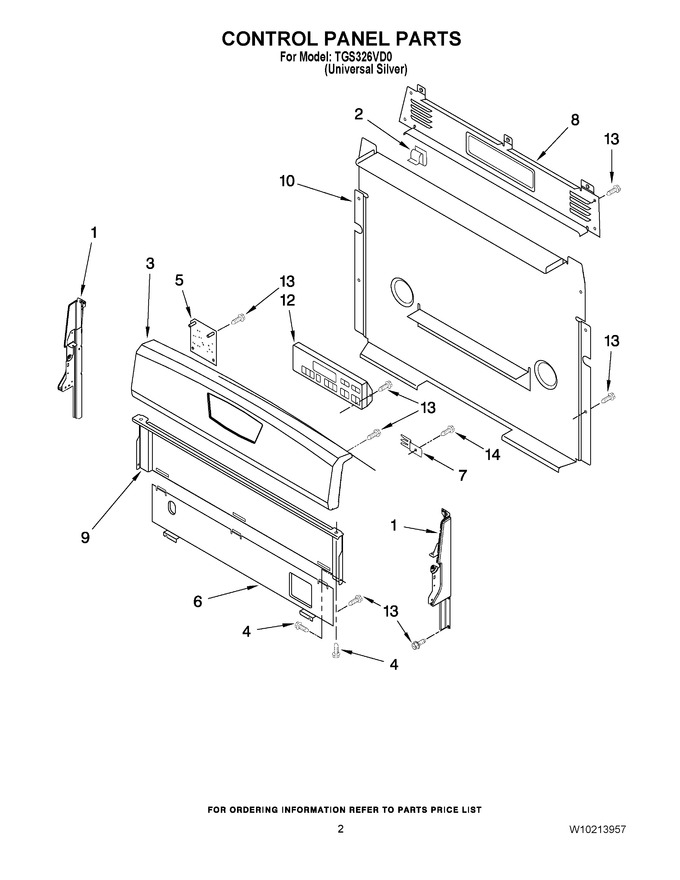

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W10202186 | Panel, Control |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 393.86 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 165.89 | |||||
| 7 | 8523412 | Bracket, Support |
|
$ 167.90 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 10 | W10184370 | Cover, Lower |
|
- | |||||
| 12 | W10203145 | Control, Range |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
