SELECT A DIAGRAM

01 - Cabinet

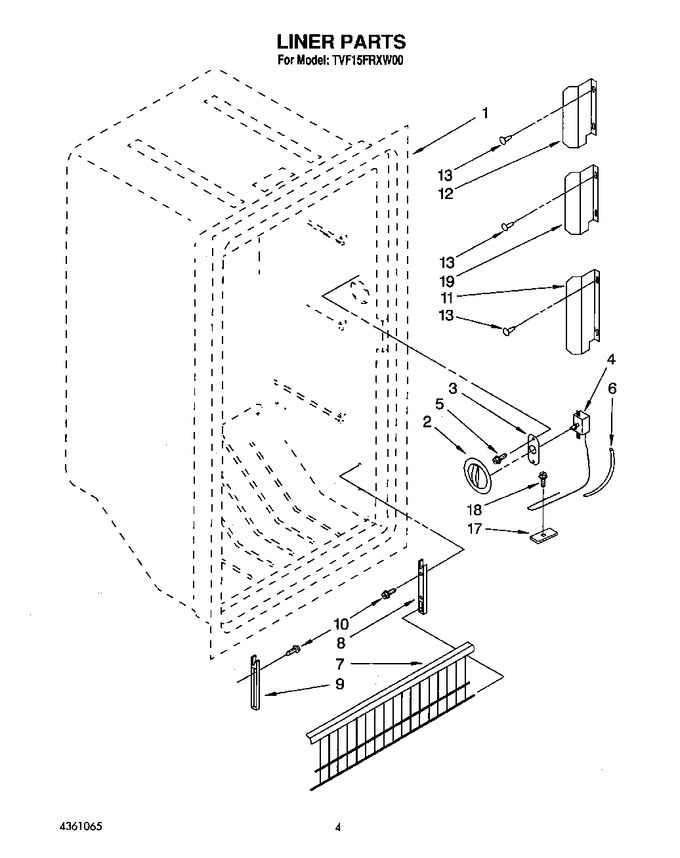

02 - Liner, Lit/optional


03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4356802		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4356806)				$ 15.00
4	4356808		Thermostat		Appelez-nous	-
5	4356809		Screw		Appelez-nous	-
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
7	4356888		Gate		Appelez-nous	-
8	4356889		Support, Fence, (r.h.)		Appelez-nous	-
9	4356890		Support, Fence, (l.h.)		Appelez-nous	-
10	4356891		Screw		Appelez-nous	-
11	4356867		Tube, Cover Bottom		Appelez-nous	-
12	4356868		Tube, Cover Top		Appelez-nous	-
13	4356892		Rivet, Plastic		Appelez-nous	-
17	4356854		Control Bulb Clamp		Appelez-nous	-
18	4356853		Control Bulb Screw		Appelez-nous	-
19	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
19	4356897		Tube, Cover Center		Appelez-nous	-
19	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
19	350930		Enamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 40.12
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
19	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
19	515393		Transformer (115-230 Volt)		Appelez-nous	-
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
19	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	LIT4361065		Parts List		Appelez-nous	-
	LIT4356910		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
