01 - Cabinet


02 - Liner, Lit/optional


03 - Door

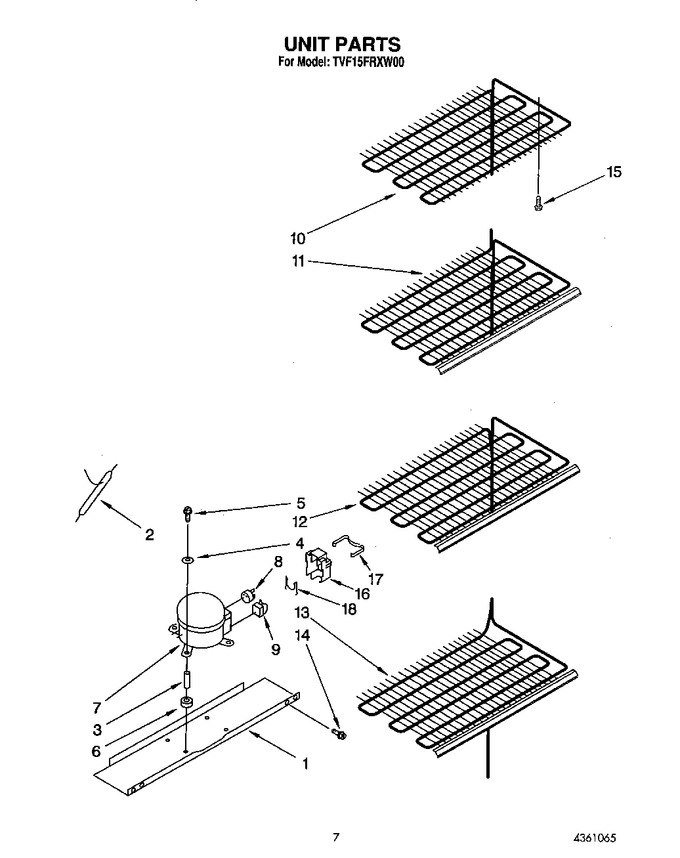

04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356837		Compressor Mounting Pan		Appelez-nous	-
2	W10843121		Drier Assembly   (Replaces: 4356845)			Immediately	$ 57.13
3	4356846		Compressor Grommet Sleeve				$ 15.00
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356855		Compressor Grommet		Appelez-nous	-
7	4356856		Compressor		Appelez-nous	-
8	4356857		Relay		Appelez-nous	-
9	4356858		Overload		Appelez-nous	-
10	488946		Evaporator Top   (Replaces: 4356859)				$ 21.47
11	4356864		Evaporator Shelf (one)		Appelez-nous	-
12	4356865		Evaporator Shelf (two)		Appelez-nous	-
13	4356866		Evaporator Shelf (three)		Appelez-nous	-
14	WP3-24838-048		Compressor Pan Screw   (Replaces: 4356820)				$ 8.33
15	4356851		Evaporator, Mounting Screw		Appelez-nous	-
16	4356946		Cover		Appelez-nous	-
17	4356951		Clip, Cover		Appelez-nous	-
18	4356945		Overload Spring		Appelez-nous	-
