SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Door


04 - Unit

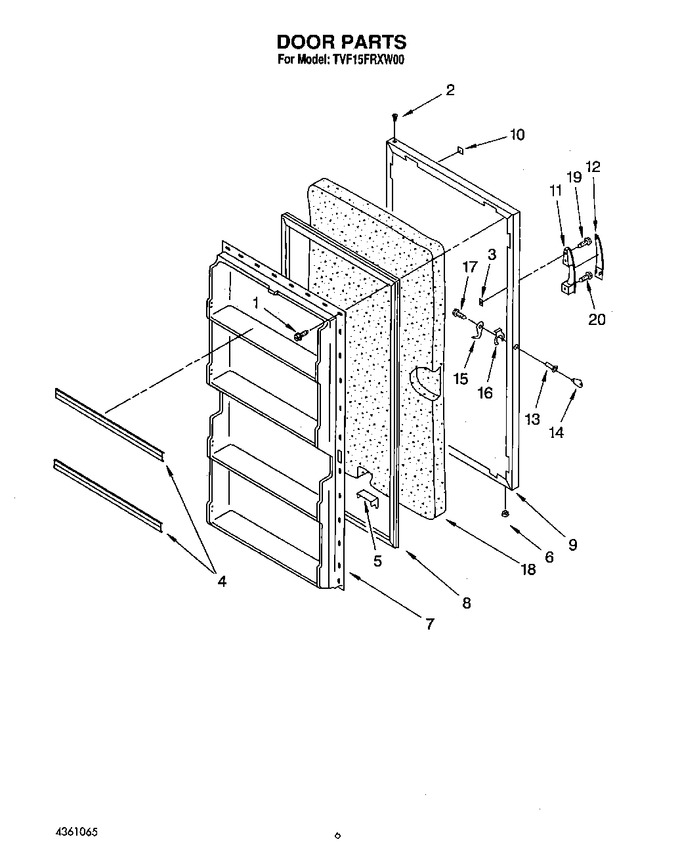

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 8.18
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356813		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 11.34
7	WP4390870		Interior Door   (Replaces: 4356814)				$ 278.76
8	WP4357099		Door Gasket   (Replaces: 4356912)				$ 338.88
9	4356899		Exterior Door (white)		Appelez-nous	-
10	4356911		Nameplate		Appelez-nous	-
11	4356895		Handle, Chrome		Appelez-nous	-
12	4356914		Handle, Insert (cherry Hill)		Appelez-nous	-
13	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
14	WP4356840		Key   (Replaces: 4356840)				$ 11.28
15	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 28.49
16	4356842		Spring, Clip Mounting				$ 12.24
17	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 8.18
18	876370		Fiberglass Insulation				$ 243.14
19	302717		Screw, Handle		Appelez-nous	-
20	488839		Screw Handle Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
