SELECT A DIAGRAM

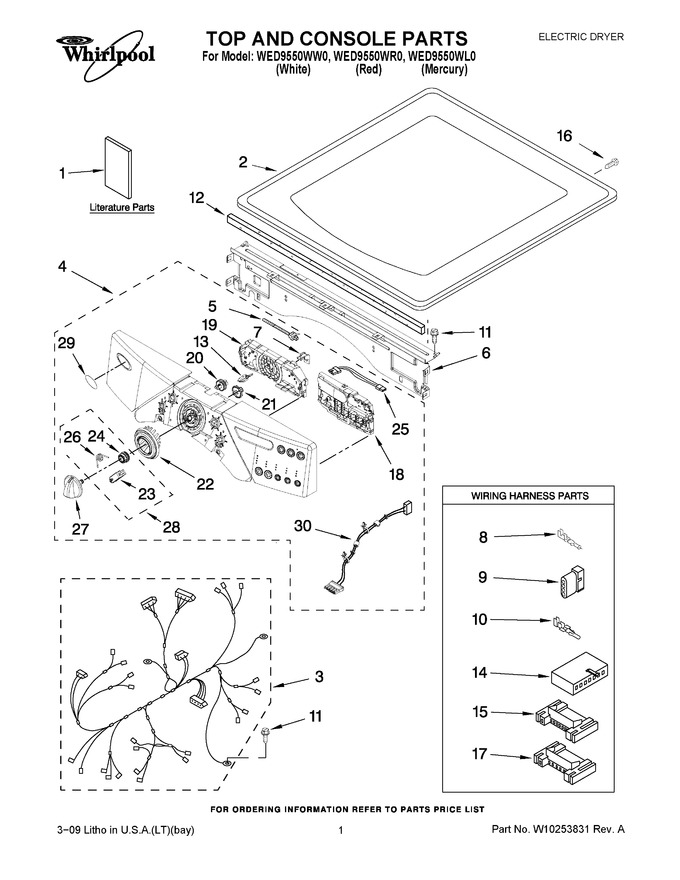

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10139322		Tip Sheet Dryer Steam		Appelez-nous	-
1	W10244607		Use & Care Guide		Appelez-nous	-
1	W10251193		Tech Sheet		Appelez-nous	-
1	W10224585		Installation, Instruction		Appelez-nous	-
2	8519251		Top (white)		Appelez-nous	-
2	W10249738		Top (red)				$ 131.95
2	W10249739		Top (mercury)				$ 127.37
3	W10238916		Harness, Main		Appelez-nous	-
4	W10251606		Panel, Console (includes Items: 20,21,22,27,28 & 29) (red)				$ 540.79
4	W10251598		Panel, Console (includes Items: 20,21,22,27,28 & 29) (mercury)				$ 530.68
4	W10246596		Panel, Console (includes Items: 20,21,22,27,28 & 29) (white)				$ 362.78
5	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
6	W10215656		Bracket, Console (includes No.12)				$ 72.06
7	W10112268		Clip-harness (4)		Appelez-nous	-
8	WP94614		Terminal   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	W10112267		Foam-seal				$ 92.89
13	W10012480		Array-power   (Replaces: W10030070)				$ 16.33
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 51.86
16	W11808444		Screw, 8-32 X 1/32   (Replaces: 98139)		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 12.55
18	W10248084		User-interface (right)		Appelez-nous	-
19	W10110658		User Interface (center) (includes Illus. 13)				$ 203.82
20	W10012430		Encoder-wheel				$ 20.81
21	W10012440		Retainer-snap				$ 12.36
22	W10250089		Knob, Light Ring (includes: Illus. 21)				$ 12.82
23	W10012810		Rast, Wheel Holder (service Only With Illus. 28 )		Appelez-nous	-
24	W10012460		Detent Wheel (service Only With Illus. 28)		Appelez-nous	-
25	W10095960		Harness, Communication				$ 142.18
26	W10012820		Knob, Spring (2) (service Only With Illus. 28 )		Appelez-nous	-
27	W10190685		Knob, Control (includes: Illus. 21)				$ 65.52
28	280230		Encoder, Wheel Kit. (includes Item: 23, 24, & 26)				$ 141.57
29	W10117943		Badge		Appelez-nous	-
30	W10111020		Power Cable, User-interface				$ 111.79

    View Diagram in Separate Window       Print Part List
