SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

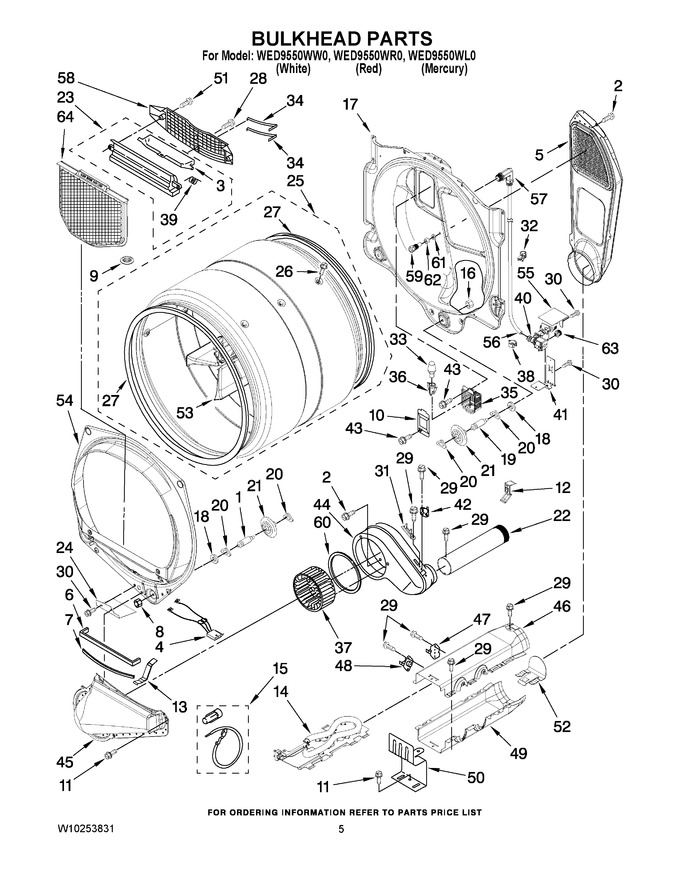

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 203.72 | ||||
| 4 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 151.96 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut-3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W10665050 | Cap-plug (Replaces: W10128544) |
|
$ 19.19 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 11 | WP489463 | Screw, 8-18 X 3/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 7.78 | |||||
| 13 | WP8066208 | Clip, Spring (Replaces: 8066208) |
|
$ 8.17 | |||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 119.29 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W10133857 | Bulkhead, Rear |
|
$ 151.95 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | 279936 | Exhaust Pipe (Replaces: 8563745) |
|
$ 146.84 | |||||
| 23 | W11129408 | Housing,outlet (Replaces: 3394985) |
|
Immediately | $ 53.28 | ||||
| 24 | W11257251 | Shield, Blower Housing (includes Item, 2) (Replaces: W10128629) |
|
$ 68.63 | |||||
| 25 | W10545924 | Complete Drum Assembly (Replaces: W10181466) |
|
$ 435.06 | |||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 29 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 30 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 31 | WP3392519 | Thermal Fuse (91`c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 32 | WP3391018 | Cable-tie (Replaces: 3391018) |
|
$ 31.84 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 20.88 | |||||
| 36 | W11700522 | Socket Assembly (Replaces: W10136369) |
|
$ 73.15 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | W10044599 | Clip, Push-to-connect (Replaces: W10044615) |
|
$ 14.29 | |||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 40 | W10044596 | Valve, Water Inlet (includes Items, 30,41,55, & 63) |
|
- | |||||
| 41 | W10044597 | Bracket-valve |
|
- | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 101.70 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 207.12 | |||||
| 46 | WP8544769 | Housing Slot Heater Box (Replaces: 8544769) |
|
$ 165.62 | |||||
| 47 | 280148 | Thermal Cut-off (includes Illus. 48) |
|
Immediately | $ 54.61 | ||||
| 48 | WP8557403 | Thermostat 295 (146 C) (hi-limit) (Replaces: 8557403) |
|
Immediately | $ 79.75 | ||||
| 49 | 8544770 | Housing Tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | 8544776 | Flange, Heater Box |
|
$ 18.10 | |||||
| 53 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 54 | 8519245 | Bulkhead, Front (includes Illus. 65 & 66) |
|
- | |||||
| 55 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 125.57 | ||||
| 56 | W10044598 | Hose (not Servicable Included With Illus. 57) |
|
- | |||||
| 57 | W10044606 | Nozzle & Hose Assembly (includes Items, 32,59,61 & 62) |
|
- | |||||
| 58 | W11086603 | Grille, Outlet (Replaces: 8299979) |
|
Immediately | $ 35.14 | ||||
| 59 | W10044629 | Nozzle & Screen Assembly |
|
$ 154.07 | |||||
| 60 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 61 | W10044579 | Washer, Nozzle |
|
$ 8.78 | |||||
| 62 | W10044628 | Nut, Brass 9/16-24 X 1/32 |
|
$ 92.64 | |||||
| 63 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 81.96 | |||||
| 64 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 |
