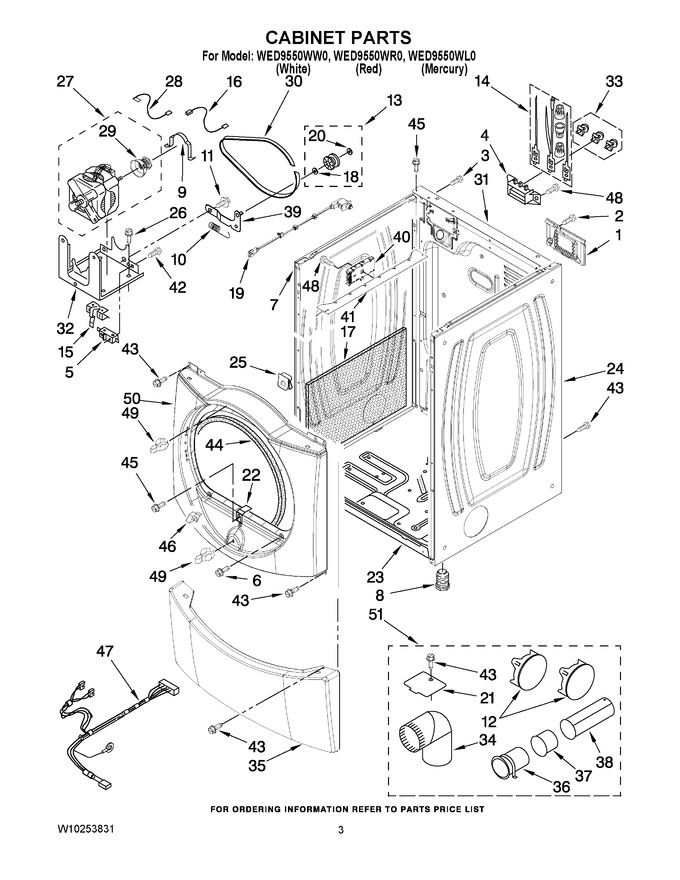

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 128.35
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 7.76
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
7	W11233548		Panel, Side (l.h.) (white)   (Replaces: W10192435)				$ 248.89
7	W10249768		Panel, Side (l.h.) (red)				$ 121.14
7	W10249727		Panel, Side (l.h.) (mercury)				$ 147.25
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent (white)   (Replaces: 697750)			Immediately	$ 76.65
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 71.98
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	279318		Terminal, Brass & Tinned (3) (includes Illus. 33)			Immediately	$ 100.99
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 33.11
16	W10167612		Wire, Belt Switch				$ 12.78
17	W10128772		Sound Panel		Appelez-nous	-
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.19
19	W10128087		Assembly, Door Switch				$ 90.98
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.96
22	8529053		Ramp, Door				$ 51.37
23	W10239098		Base, Cabinet				$ 148.45
24	W10249725		Panel, Side (r.h.) (mercury)				$ 154.49
24	W11233548		Panel, Side (r.h.) (white)   (Replaces: W10192446)				$ 248.89
24	W10249769		Panel, Side (r.h.) (red)				$ 121.14
25	62825		Clip-s Type				$ 8.11
26	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
29	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.16
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10181460		Panel, Rear		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 47.37
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 26.82
35	W10116271		Toe, Panel (white)		Appelez-nous	-
35	W10250673		Toe Panel (red)		Appelez-nous	-
35	W10249737		Toe Panel (mercury)		Appelez-nous	-
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10169969		Control Board				$ 337.87
41	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 171.13
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.56
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
47	W10181463		Harness, Digital Interface				$ 118.15
48	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
49	279570		Strike, Door(2)   (Replaces: 696144)			Immediately	$ 8.89
50	W10180423		Front Panel (white)				$ 139.69
50	W10250670		Front Panel (red)				$ 139.96
50	W10249726		Front Panel (mercury)				$ 113.97
51	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
51	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
