SELECT A DIAGRAM

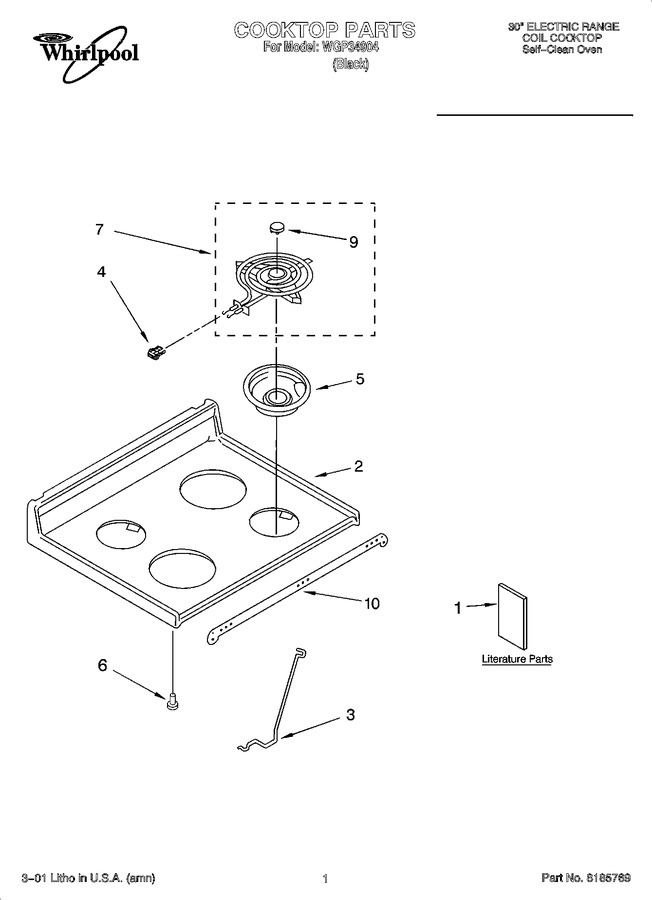

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9753738		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9754172		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9781875		Literature Parts (installation Instructions)		Appelez-nous	-
2	9781989GB		Cooktop, Coil		Appelez-nous	-
3	9751538		Cooktop, Rod (2)		Appelez-nous	-
4	9782013		Clip, Receptacle		Appelez-nous	-
4	WP313808		Screw, (4) 6-32 X 1/4   (Replaces: 9750891)				$ 8.30
5	WPW10290350		Ring-bowl 8`` (2)   (Replaces: 3169205)			Immediately	$ 16.94
5	W10290353RW		Ring-bowl 6`` (2)   (Replaces: 3169204)			Immediately	$ 21.41
6	238614		Bumper, (2)   (Replaces: 9780771)				$ 84.79
7	9782072		Element, Surface (coil, 8`` Lf-rr)		Appelez-nous	-
7	9782075		Element, Surface (coil, 6`` Lr (accu Simmer))		Appelez-nous	-
7	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9782074)			Immediately	$ 124.76
9	4211952		Medallion, (3)		Appelez-nous	-
9	4211986		Medallion ((accu-simmer))		Appelez-nous	-
10	9780270		Screw, (2)		Appelez-nous	-
10	9780585		Wire Guard				$ 35.21
