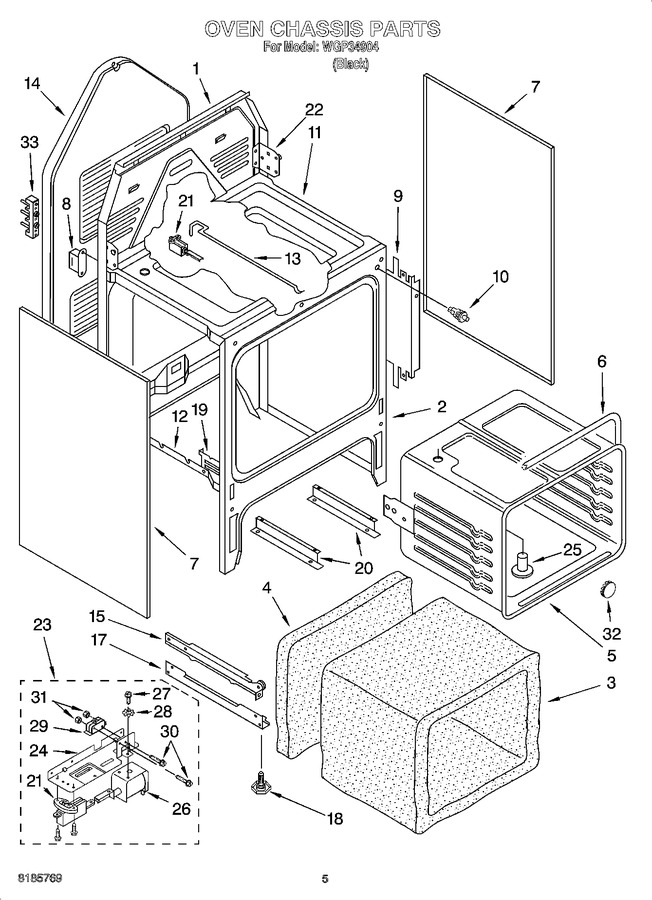

04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9750146 | Main Chassis, Back |
|
- | |||||
| 2 | 9750514GM | Chassis, Front |
|
- | |||||
| 3 | 9754000 | Insulation, Wrap |
|
- | |||||
| 4 | 9754011 | Insulation, Rear |
|
- | |||||
| 5 | 9781293GM | Oven Liner |
|
- | |||||
| 6 | 9755179 | Gasket, Oven |
|
- | |||||
| 7 | 9780265 | Screw (4) 10 X 3/8 |
|
- | |||||
| 7 | 9781907PB | Oven, Side Panel |
|
- | |||||
| 8 | 9780881 | Ballast |
|
- | |||||
| 8 | 9780265 | Screw, (1) 10 X 3/8 |
|
- | |||||
| 9 | 9780664 | Shield, Insulation |
|
- | |||||
| 9 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 10 | 808136601 | Door Switch (oven Light) (Replaces: 9752798) |
|
Immediately | $ 48.93 | ||||
| 11 | 83205 | Washer (3) |
|
- | |||||
| 11 | 9780275 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 11 | 9750479GM | Burner Box |
|
- | |||||
| 11 | 9780265 | Screw (7) |
|
- | |||||
| 12 | 9750142 | Oven Bottom |
|
- | |||||
| 12 | 9780265 | Screw (9) 10 X 3/8 |
|
- | |||||
| 13 | 9750523 | Rod, Lock |
|
- | |||||
| 14 | 9750150 | Panel, Rear |
|
- | |||||
| 15 | 9750224 | Drawer Rail, Right |
|
- | |||||
| 15 | 9780265 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 15 | 9750223 | Drawer Rail, Left |
|
- | |||||
| 17 | 9780265 | Screw, (8) 10 X 3/8 |
|
- | |||||
| 17 | 9750147 | Bottom Rail (2) |
|
- | |||||
| 18 | WPW10058460 | Foot, (4) (Replaces: 312701) |
|
Immediately | $ 8.24 | ||||
| 19 | 9780272 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 19 | 9782005 | Receiver, Hinge (r Or L) |
|
- | |||||
| 19 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 20 | 9780265 | Screw (2) |
|
- | |||||
| 20 | 9781904 | Support Rail (2) (broiler Pan) |
|
- | |||||
| 21 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 21 | 9752462 | Single Position Device (not Serviced) |
|
- | |||||
| 22 | 9780265 | Screw (4) 10 X 3/8 |
|
- | |||||
| 22 | 9750416 | Hinge, Cktp.-right |
|
- | |||||
| 22 | 9750258 | Hinge, Cktp.-left |
|
- | |||||
| 23 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 23 | 9752404 | Oven Lock Assembly |
|
- | |||||
| 24 | 9750526 | Bracket, Lock |
|
- | |||||
| 24 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 25 | 9753091 | Vent Tube |
|
- | |||||
| 26 | 9752409 | Solenoid |
|
- | |||||
| 27 | 422222 | Screw (2) 10-32 X 5/16 |
|
- | |||||
| 28 | 424238 | Washer, 10 (2) |
|
- | |||||
| 29 | 9750965 | Switch, Interlock |
|
$ 72.00 | |||||
| 30 | 9750887 | Screw, (2) |
|
- | |||||
| 31 | 9750888 | Nut (2) |
|
- | |||||
| 32 | 9780578 | Button, Plug |
|
- | |||||
| 33 | WP112432 | Nut (4) (Replaces: 112432) |
|
$ 8.63 | |||||
| 33 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 30.13 | ||||
| 33 | 98884 | Screw |
|
- |
